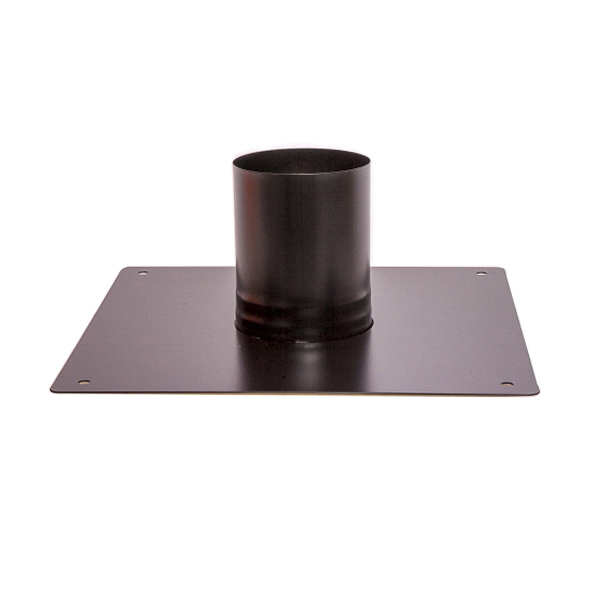

The SFL Sflue Console Plate with Adapter is designed for use on capped chimney systems, converting from a run of Flexible Liner to SFL Sflue Twin Wall pipe. The Console Plate with adapter allows for conversion from Flexible Flue Liner to Twin Wall Flue Pipe without the need for a separate adapter.
This item also comes supplied with a locking band for secure connections. Sflue utilises an eight barb quick lock jointing system to secure one joint with another and further secured with the locking band.
SFL Sflue twin wall pipe is CE approved for use in the UK, designation number BS EN:1856-1 T450 N1 D Vm L50040 G50.
Technical Details
SKU
TTWI-BSFL-LBLK-D125-CCNA
Brand
SFL Sflue
Flue System
Twin Wall Flue System
Flue Diameter
5" (125mm)
Flue Colour
Black
Flue Part
Console plate
Warranty10 years
FinishBlack
Temperature Resistance450°C
ApprovalsHETAS Approved, CE, BS EN ISO 9001
Designation NoBS EN:1856-1 T450 N1 D Vm L50040 G50
Manufacturer: SFL Sflue
SFL Sflue is a top end product and with a large range of components and a multi-barb twist-lock jointing system, Sflue offers the ultimate in ease of installation and quality at a competitive price. It’s a CE approved product and has been tested to the requirements of BS EN 1856-1. Sflue is a prefabricated, factory made twin-wall insulated stainless steel system chimney. The fully welded construction combined with a high performance / high density insulating medium, provides the optimum level of performance required for modern-day solid fuel appliances such as DEFRA approved high-efficiency wood-burners alongside traditional stove installations.
