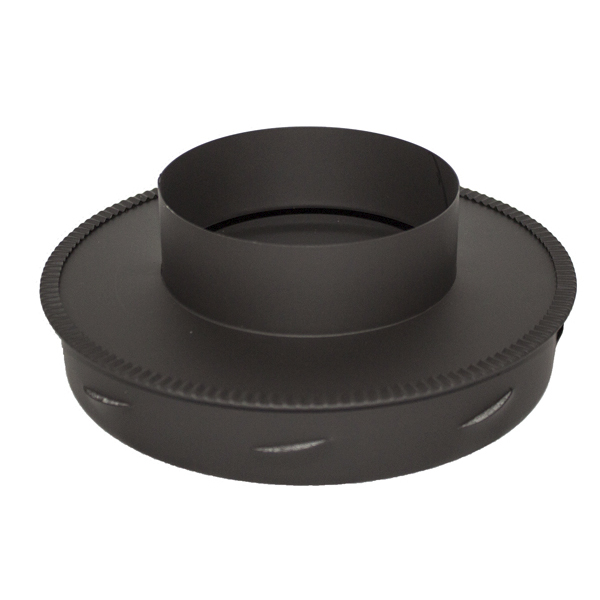

The SFL Sflue single to twin wall adaptor is the first twin wall flue part you will need for your twin wall flue installation. It connects directly to your stove spigot and then upwards to your twin wall pipes or to the length of enamelled pipe coming out of the top of your stove. It is usually recommended to come straight out of the stove with a length of enamel pipe as this pipe is both cheaper and harder wearing.
Please note – as with all twin wall parts the diameter quoted is the internal diameter – the external diameter is 2 inches larger due to the surrounding insulation.
Technical Details
SKU
TTWI-BSFL-LBLK-D125-CSW/TW
Brand
SFL Sflue
Flue System
Twin Wall Flue System
Flue Diameter
5" (125mm)
Flue Colour
Black
Flue Part
Adapter
Distance to Combustibles50mm
Warranty10 years
FinishBlack
Internal TW Diameter127mm
External TW Diameter178mm
ConnectionsEight Barb Twist Quick Lock (Locking Band Included)
Grade of Steel316 Internal, 304 External
Thickness of Steel0.5mm
Insulation25mm auger injected mineral wood material
Temperature Resistance450°C
ApprovalsHETAS Approved, CE, BS EN ISO 9001
Designation NoBS EN:1856-1 T450 N1 D Vm L50040 G50
Manufacturer: SFL Sflue
SFL Sflue is a top end product and with a large range of components and a multi-barb twist-lock jointing system, Sflue offers the ultimate in ease of installation and quality at a competitive price. It’s a CE approved product and has been tested to the requirements of BS EN 1856-1. Sflue is a prefabricated, factory made twin-wall insulated stainless steel system chimney. The fully welded construction combined with a high performance / high density insulating medium, provides the optimum level of performance required for modern-day solid fuel appliances such as DEFRA approved high-efficiency wood-burners alongside traditional stove installations.
