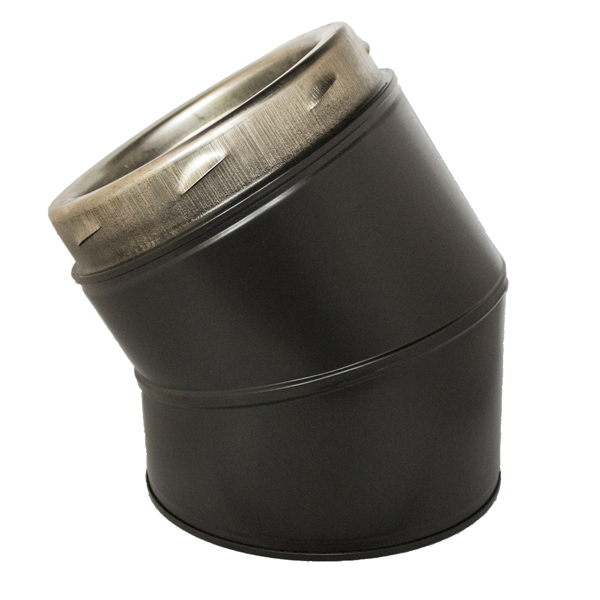

5" (125mm) 30 Degree Elbow Inc Locking Band Sflue Black

5" (125mm) 30 Degree Elbow Inc Locking Band Sflue Black
Qty:

Get it Tomorrow if you order within and choose next day shipping at checkout

Order By 12.00pm For Next Working Day Delivery* *select delivery upgrade at checkout

Available for collection within one business day

No need to create an account to get delivery costs.
For a full delivery quote to your address, add the products you require to your basket and click the ‘View Contents’ button to see a full list of delivery options and costs for your entire order.

Technical Data


    The 30° Elbow is used for creating offsets in an SFL Sflue twin wall pipe system. This item also comes supplied with a locking band for secure connections.

    Sflue utilises an eight barb quick lock jointing system to secure one joint with another and further secured with the locking band.

    Please note, to allow the full rotation of the part, this item does not feature the barbs at one end but is instead secured in place using the locking band provided.

    SFL Sflue twin wall pipe is CE approved for use in the UK, designation number BS EN:1856-1 T450 N1 D Vm L50040 G50.

    • Distance to Combustibles: 50mm
    • Warranty: 10 years
    • Finish: Black
    • Internal Diameter: 127mm
    • External Diameter: 178mm
    • Connections: Twist Lock & Push Fit (Locking Band Included)
    • Grade of Steel: 316 Internal, 304 External
    • Thickness of Steel: 0.5mm
    • Insulation: 25mm auger injected mineral wood material
    • Temperature Resistance: 450°C
    • Approvals: HETAS Approved, CE, BS EN ISO 9001
    • Designation No: BS EN:1856-1 T450 N1 D Vm L50040 G50
