Adjustable Base Support Twin Wall Insulated Flue Pipe – 5″ (125mm)

£109.79 Inc VAT

Add to Cart
Adjustable Base Support Twin Wall Insulated Flue Pipe - 5" (125mm)
Adjustable Base Support Twin Wall Insulated Flue Pipe - 5" (125mm)
£109.79 Inc VAT

Display Option

Total: £109.79
Get this item on Tuesday if you order within and choose next day shipping at checkout

Delivery

  • Order by 12pm - next working day delivery (*upgrade at checkout)
  • Available for Click & Collect - allow one working day

An Adjustable Base Support is designed to significantly improve the strength of a flue system and is recommended for any long external Twin Wall run. Positioned at the base of the flue, this part creates a secure anchor point and can support up to 20m of flue. Shieldmaster Twin Wall is compatible for use with all solid fuels as well as gas and oil appliances and has a safe distance to combustibles of 50mm. It is also available powder coated to black.

Shieldmaster does not need any additional silicone or sealants to seal the joints. It has a unique push-fit locking system to make connecting and disconnecting really simple.

Important Information

All twin wall flue parts are measured by their internal diameter. Due to the insulated construction, the external diameter will be approximately 2 inches larger than the stated size.

Technical Guidance

For help with installation requirements and compliance, please see our Technical Information section, which includes easy-to-understand guides covering Building Regulations for stove and flue installations.

For more information about twin wall flue installations, see our guide.

Technical Details

SKUTTWI-BSHI-LSTN-D125-CBSU
BrandShieldmaster
Flue SystemTwin Wall Flue System
Flue Diameter5" (125mm)
Flue ColourSilver
Flue PartBracket
  • Distance to Combustibles60mm
  • Warranty25 Years
  • FinishStainless

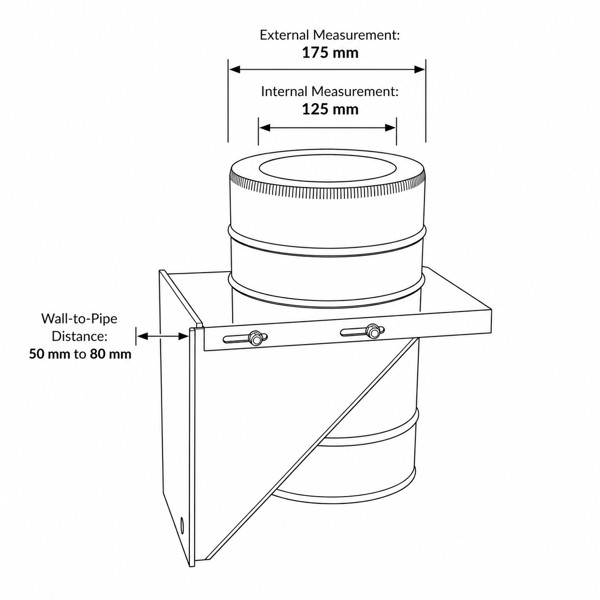

  • Support Diameter200mm
  • Wall To Pipe Distance50mm To 80mm
  • Maximum Flue LoadUp to 20m
  • Grade of Steel316
  • Thickness of Steel0.4mm
  • Temperature Resistance450°C

Manufacturer: Shieldmaster

Shieldmaster twin wall flue pipe is precision made to achieve a smaller distance to combustible materials than many other pipes on the market. At just 60mm minimum clearance to combustibles and a 25 year warranty this brand of twin wall pipe really does the job well and is built to last. With its unique push fit system it easily locks with an included band without the need for any sealant or adhesives at the joins.

Warranty Details

Shieldmaster flue products come with a 25-year warranty covering manufacturing defects, provided the system is installed and used in accordance with the supplied installation instructions. To maintain warranty validity, the flue must be professionally swept at least once a year by an approved chimney sweep, with a signed service record kept. When burning solid fuels, only those approved by HETAS or the Solid Fuel Association are permitted. Use of unapproved fuels or any indication of a chimney fire will void the warranty. For coloured flue pipes with a powder-coated finish, the surface coating is covered by a separate 2-year warranty.

Shieldmaster Twin Wall Flue Systems Brochure

1 review for Adjustable Base Support Twin Wall Insulated Flue Pipe – 5″ (125mm)

  1. Sheryl Cookson –

    Arrived intact but very scratched. Additional packaging advisable due to the delicateness of flues.
