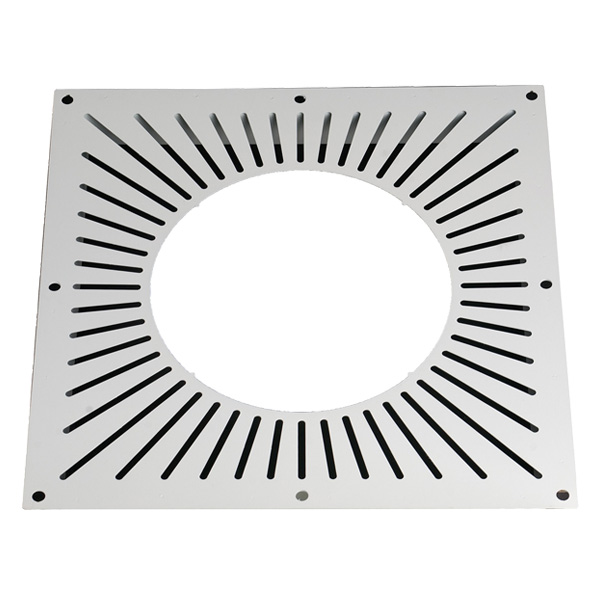

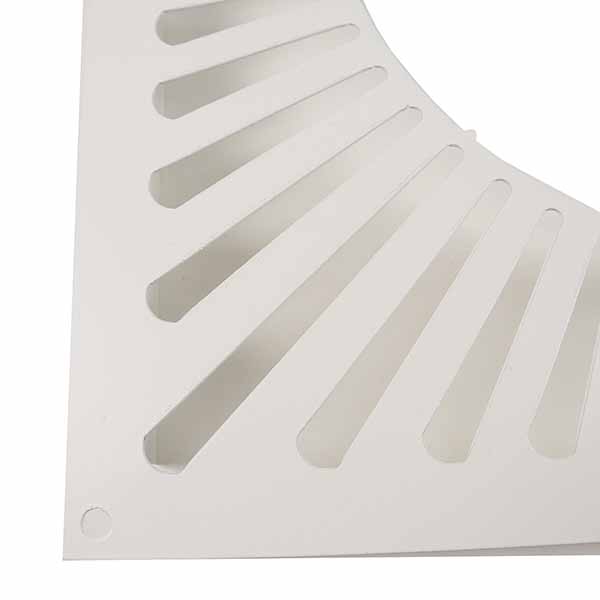

Ventilated Fire Stop Plate For Twin Wall Flue Pipe - 5" (125mm)
Get this item Wednesday if you order within and choose next day shipping at checkout
Order By 12.00pm For Next Working Day Delivery* *select delivery upgrade at checkout
Available for collection within one business day
No need to create an account to get delivery costs.
For a full delivery quote to your address, add the products you require to your basket and click the ‘View Contents’ button to see a full list of delivery options and costs for your entire order.
Technical Data
This ventillated firestop plate is appropriate for use with solid fuel appliances - see the non-ventilated firestop plate if you are not using a solid fuel stove. One plate should be around the pipe passing through a floor on every side where there is a living compartment.
Please see our Technical Information section for easy to understand guides for all the Building Regulations involved with stoves and flues.
For more information about twin wall flue installations, see our guide.
- Distance to Combustibles: 60mm
- Brand: Shieldmaster
- Warranty: 25 Years
- Finish: White

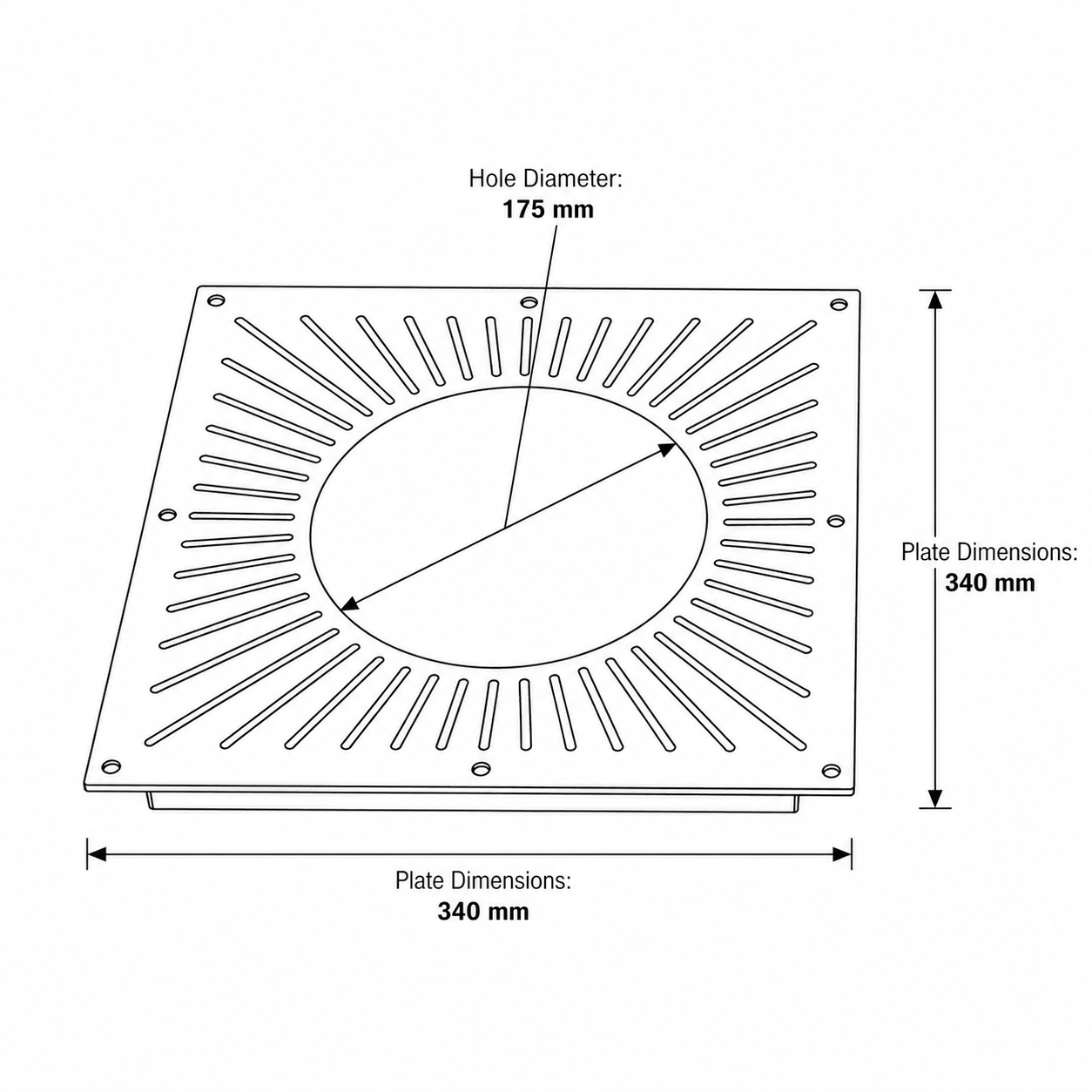

- Hole Diameter: 175mm
- Plate Dimension: 340mm x 340mm
- Grade of Steel: 304 External
- Thickness of Steel: 0.5mm
- Temperature Resistance: 450°C
- Approvals: HETAS ANC112, BS 476-20, CE, EN 1856-1:2009
- Designation: T450-N1-D-Vm-L50050-G60
