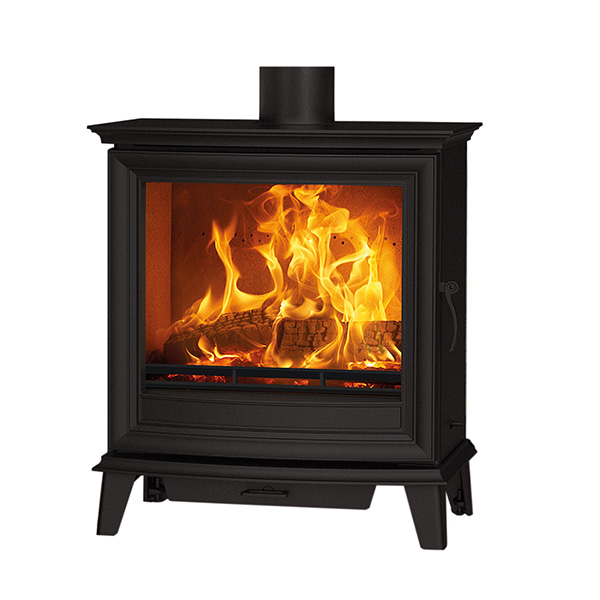

Stovax Chesterfield 5 Wide – 5kw Defra Multifuel Stove

£2,447.18 Inc VAT

Add to Cart
Stovax Chesterfield 5 Wide -  5kw Defra Multifuel Stove
Stovax Chesterfield 5 Wide - 5kw Defra Multifuel Stove
£2,447.18 Inc VAT

Optional Extras

Stove Fitting Kit

* inc. 1m stove pipe + 800x400mm register plate

Flexible Chimney Liner Kit

* inc. chimney flue liner, adapter, cowl + notice plate

Stove Glass - Accidental Damage Cover

Display Option

Total: £2,447.18

Delivery

  • Free Delivery
  • Available for Click & Collect - we'll email when ready

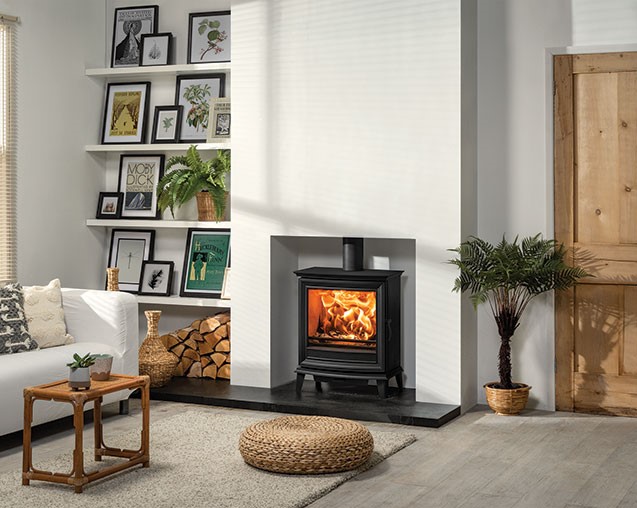

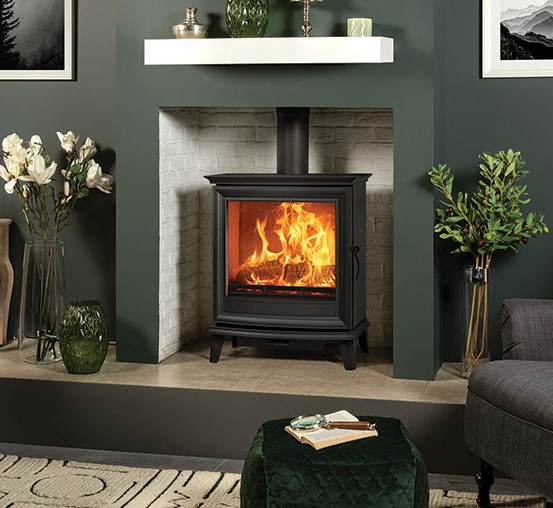

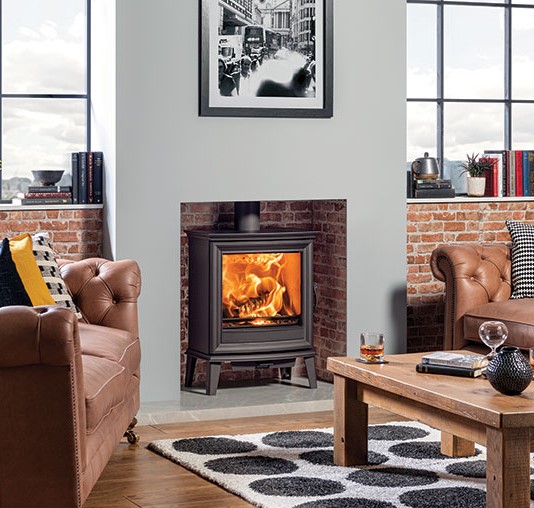

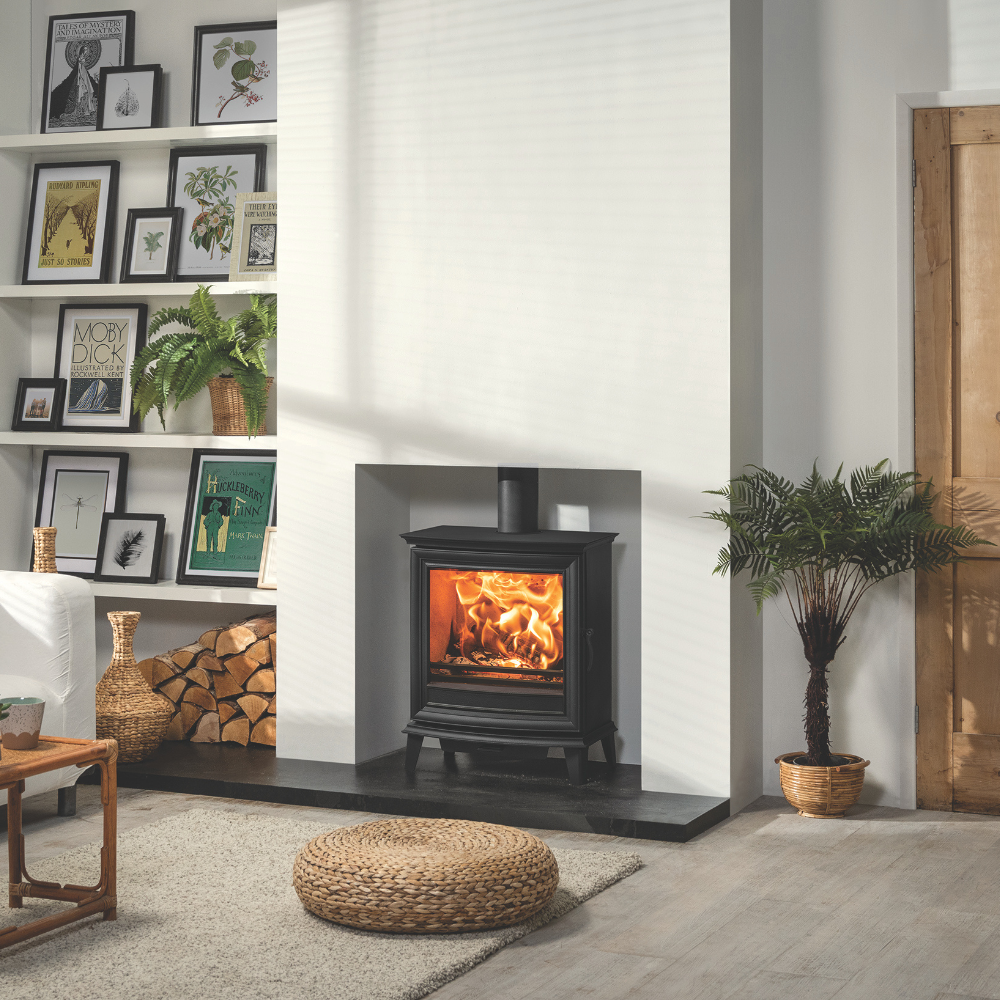

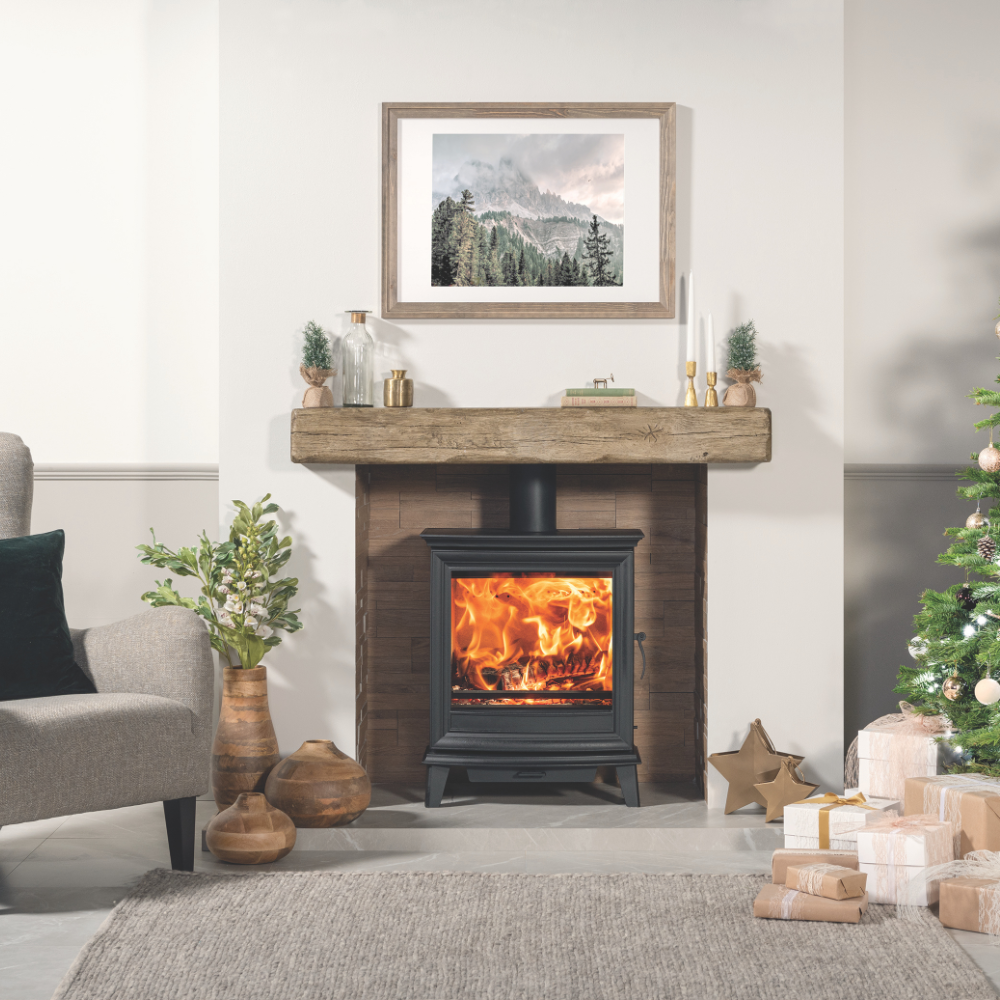

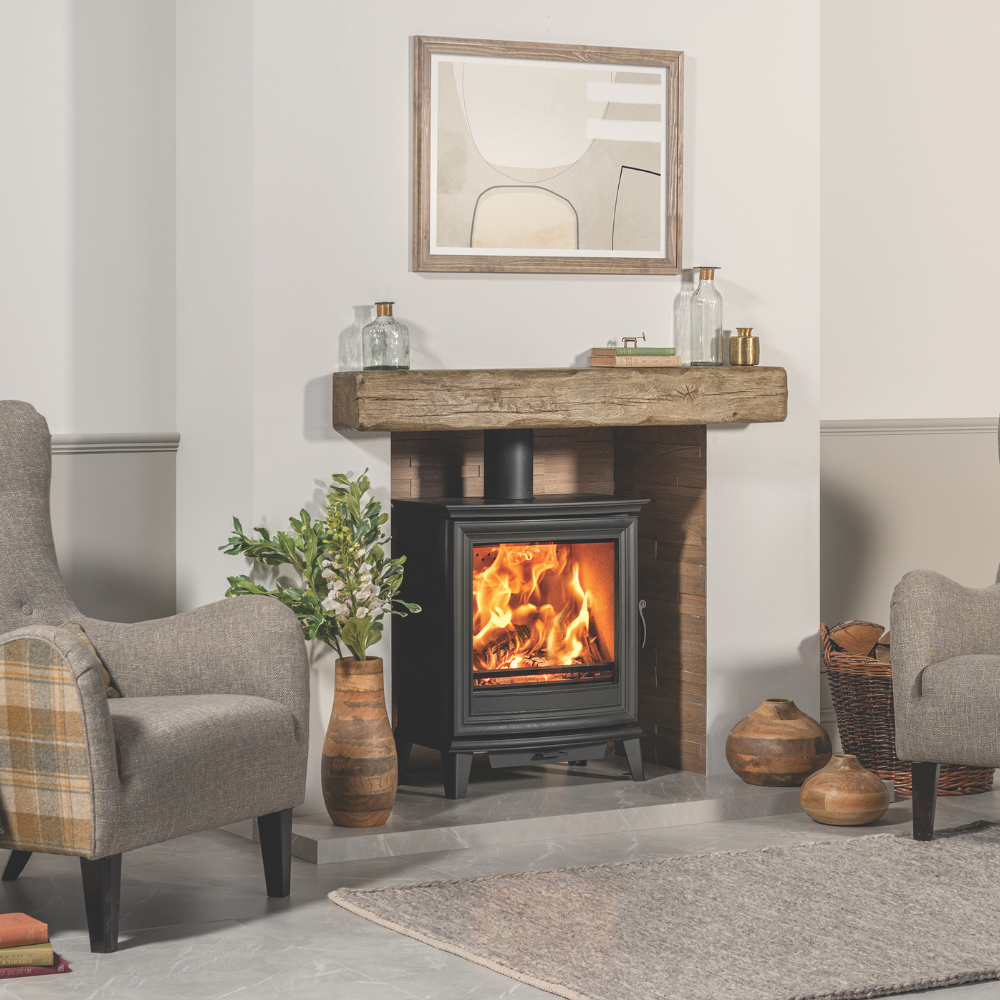

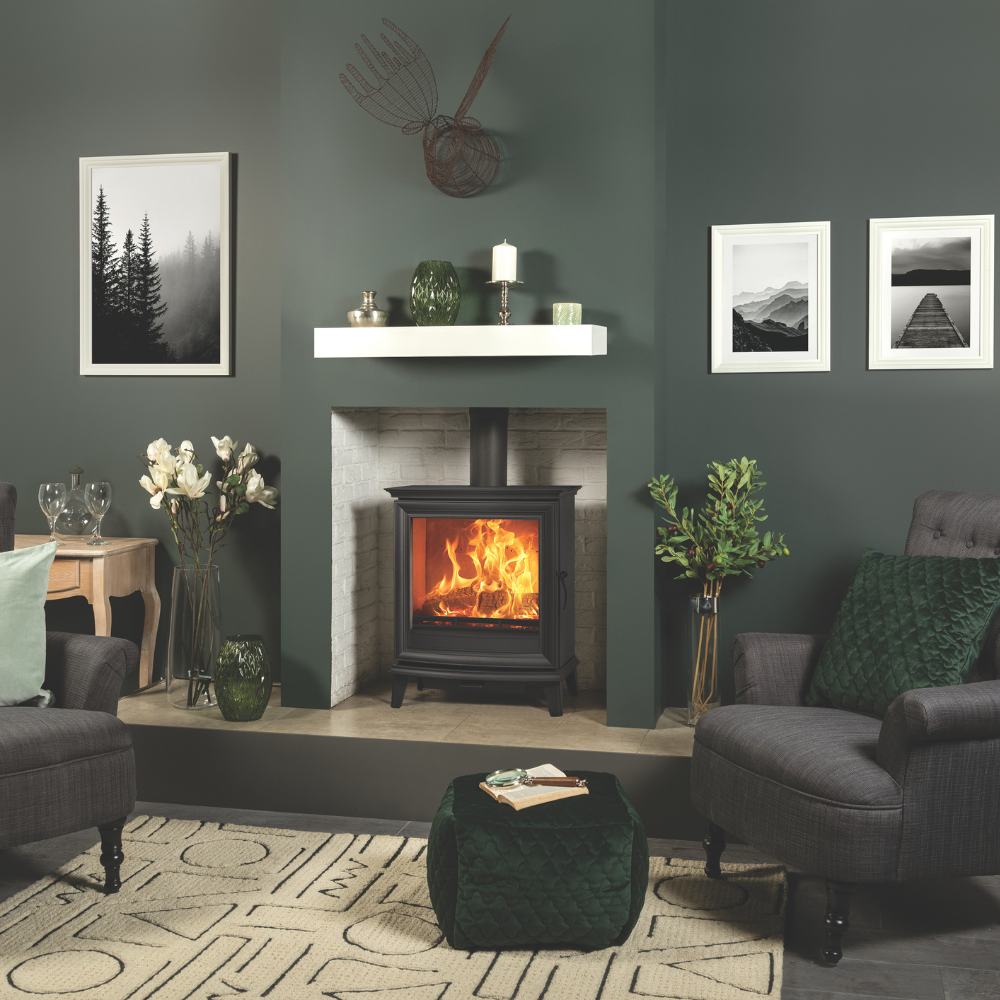

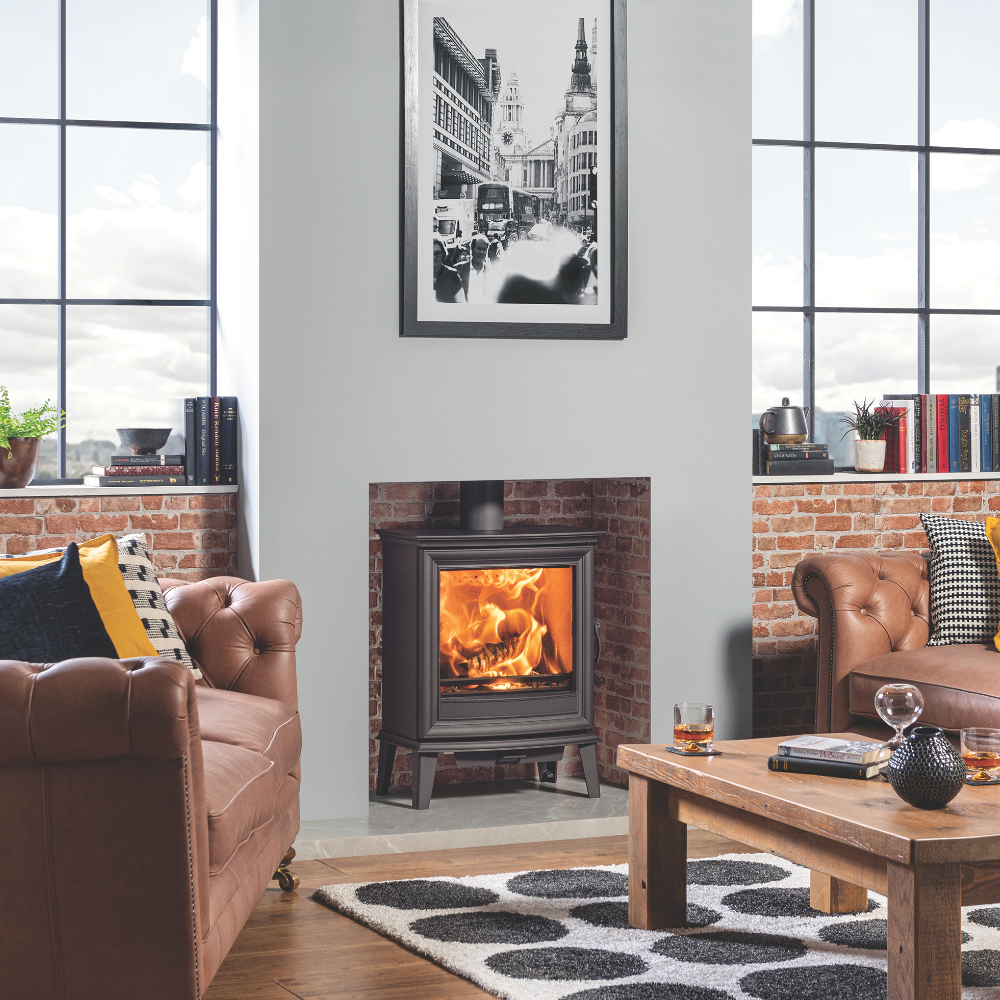

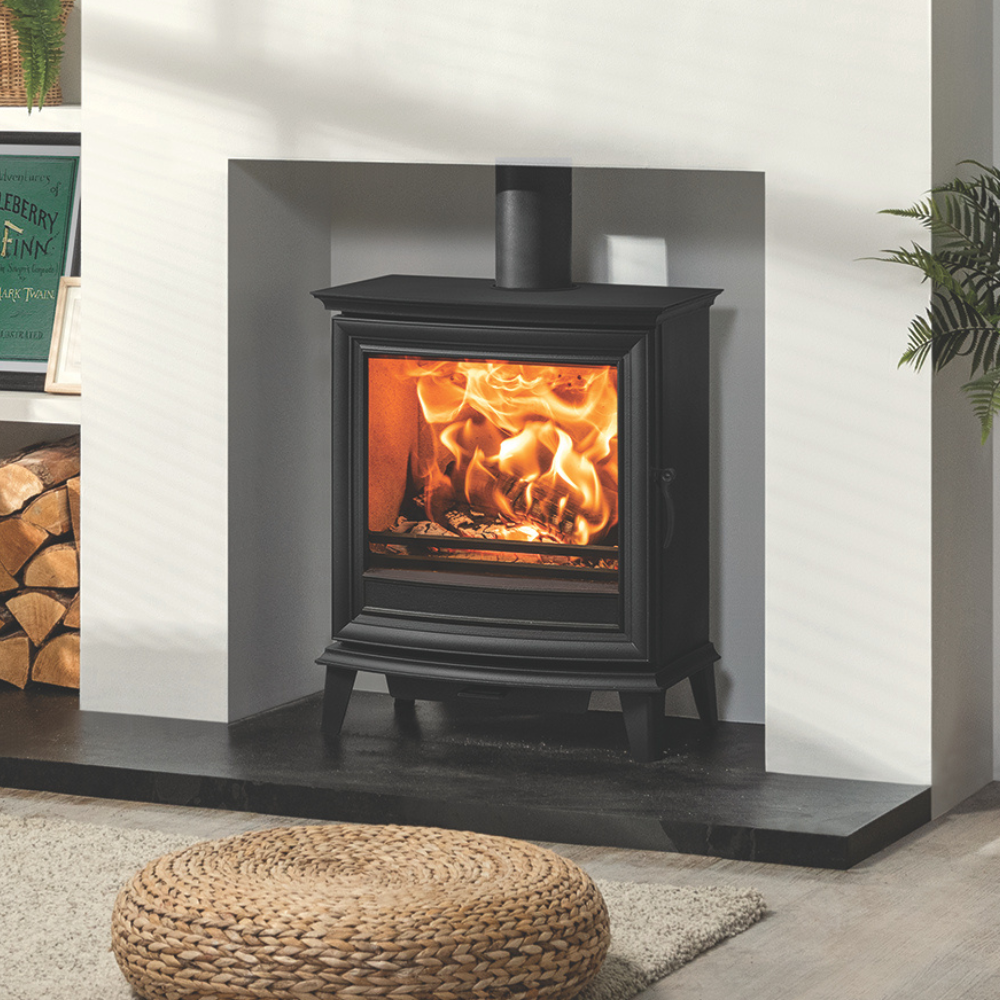

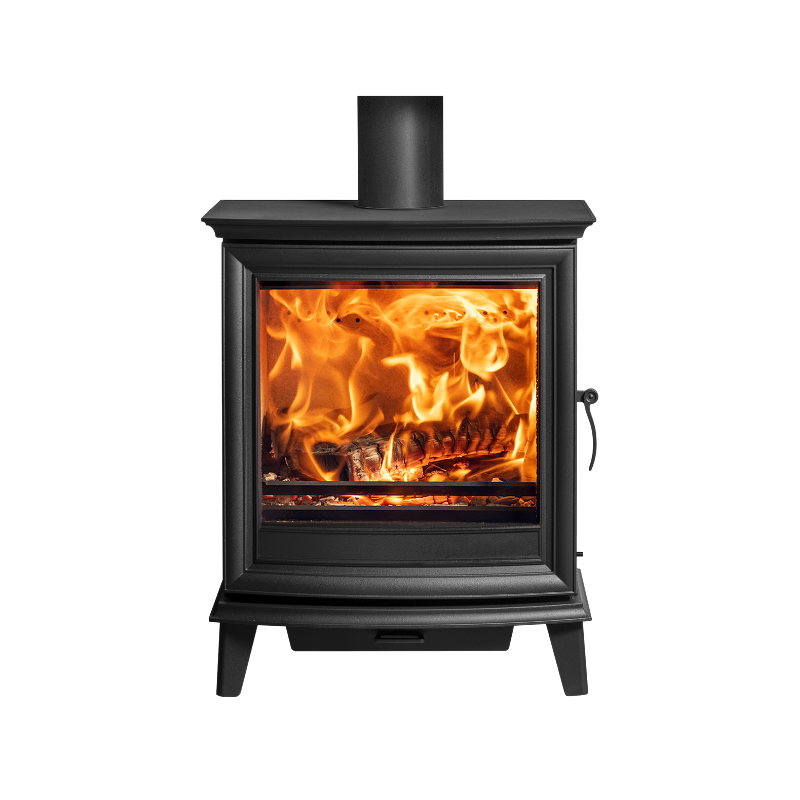

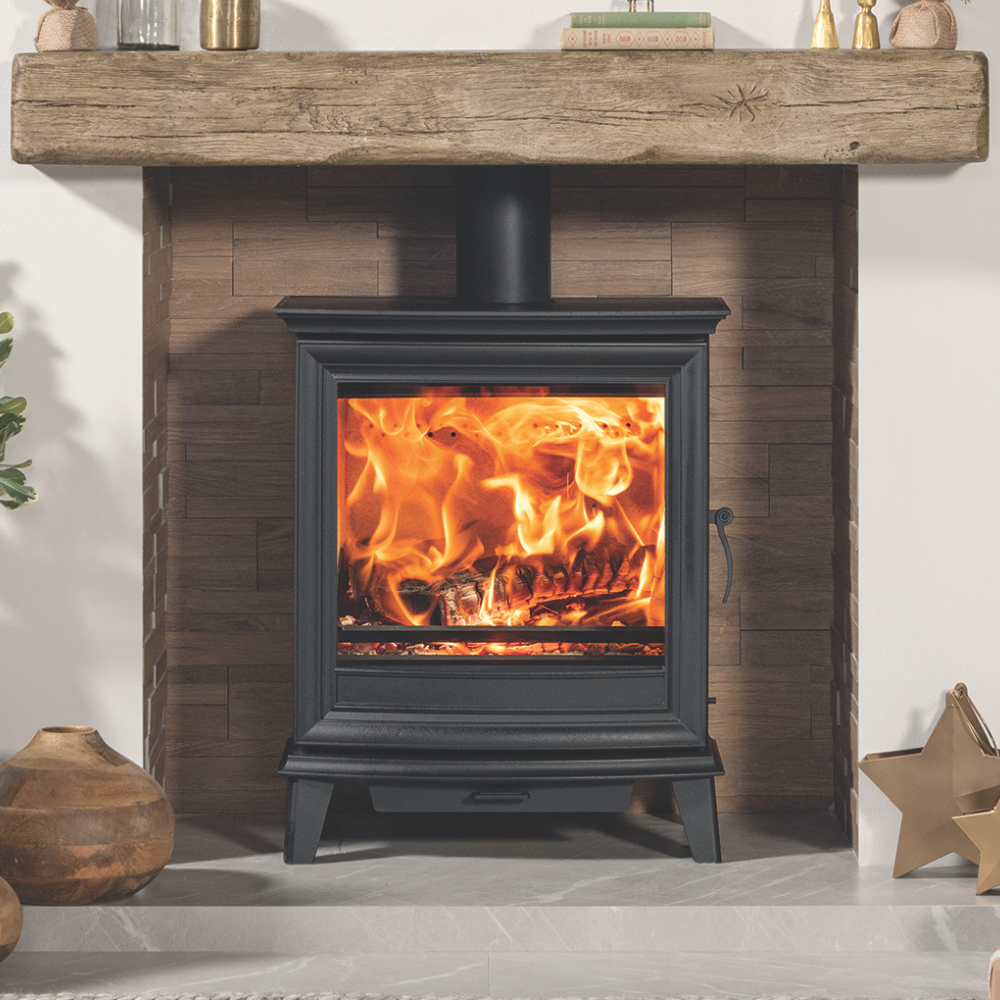

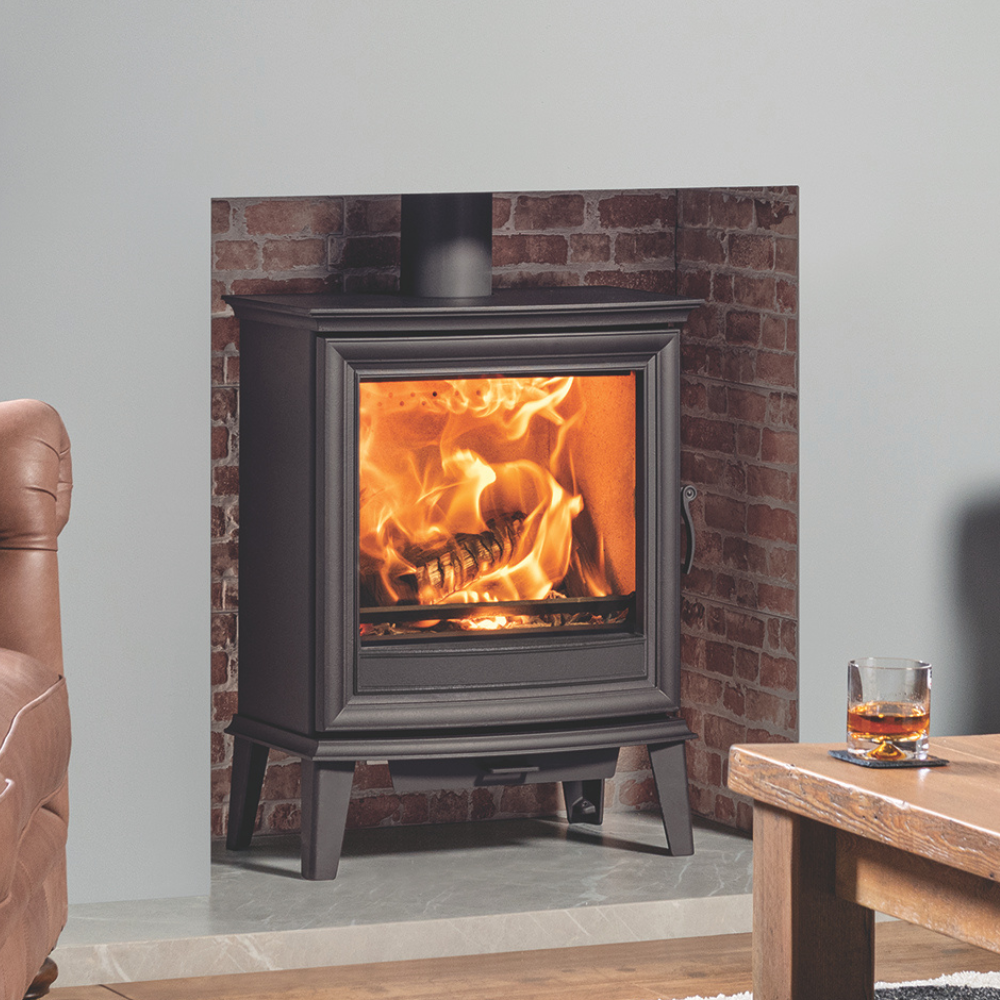

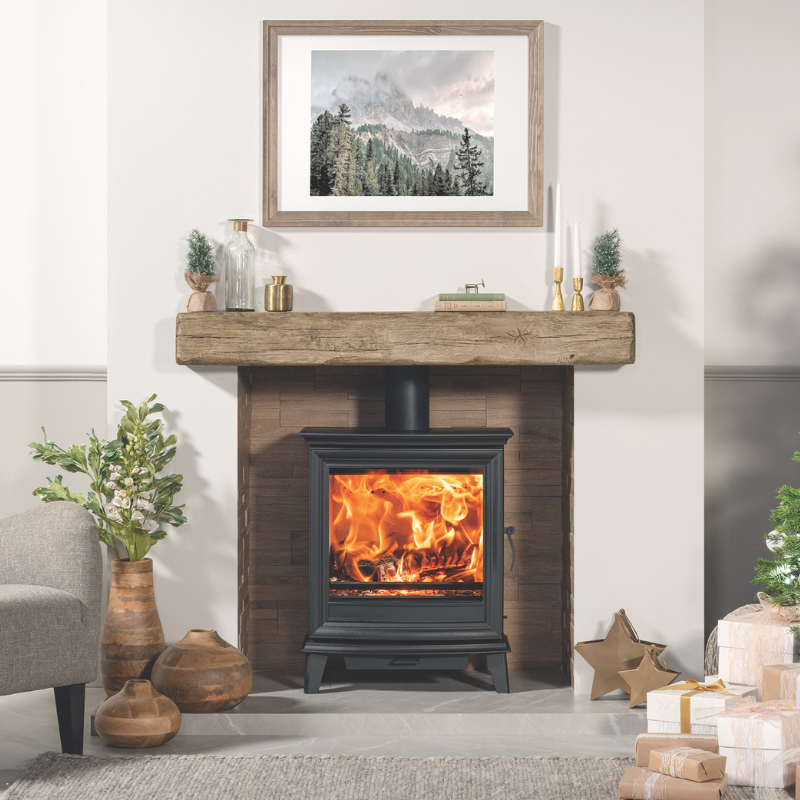

Bring classic charm and enhanced flame visuals into your home with the Stovax Chesterfield 5 Wide Multifuel Stove. Featuring a broader, more expansive design than the standard Chesterfield 5, this model offers an impressive widescreen flame picture while maintaining a practical 5kW heat output—ideal for small to medium-sized rooms. Designed with a slimline depth, the Chesterfield 5 Wide is perfect for installations where space is limited without compromising on performance or aesthetics. Its advanced convector heat flow system ensures efficient heat distribution throughout the room, while its multifuel capability allows you to burn both wood logs and authorised smokeless fuels with ease. Combining traditional cast iron styling with modern Eco Design performance, this DEFRA-approved stove delivers both timeless appeal and environmentally responsible heating.

Key Features

  • 5kW Nominal Heat Output – Provides efficient and reliable heating for small to medium-sized rooms, with a practical output range of approximately 2.5kW–7kW.
  • DEFRA Approved for Smoke Control Areas – Fully DEFRA exempt, allowing you to legally burn wood and authorised smokeless fuels in smoke-controlled zones across the UK.
  • Multifuel Capability – Designed to burn both seasoned logs and smokeless mineral fuels, offering greater flexibility depending on fuel preference and availability.
  • Wide Landscape Flame View – The broader widescreen design provides an impressive panoramic flame picture, creating a stunning focal point within any living space.
  • Slimline Depth Design – Specifically designed for shallower fireplace openings and tighter installations without compromising heating performance or flame visuals.
  • Elegant Traditional Styling – Features detailed cast iron styling with tasteful bevelled detailing, combining timeless aesthetics with modern stove engineering.
  • Convector Heat Flow System – Advanced convector technology channels warm air around the firebox to improve heat circulation and reduce the required distance to combustible materials.
  • High Efficiency Performance – Delivers high efficiency heating with Eco Design-ready combustion technology for lower fuel consumption and reduced emissions.
  • Cleanburn & Airwash Technology – Advanced airflow systems improve combustion efficiency while helping to keep the viewing glass cleaner for longer.
  • External Riddling System – Allows easy ash management and convenient switching between wood and smokeless fuel operation.
  • Optional External Air Kit – Compatible with an external air supply kit, making it suitable for modern airtight homes and improving combustion efficiency.
  • Top or Rear 5” Flue Outlet – Flexible flue positioning options simplify installation across a variety of chimney and fireplace configurations.
  • 12mm Hearth Compatible – Suitable for installation on a 12mm hearth, offering greater flexibility for contemporary fireplace designs.
  • Durable Steel Body with Cast Iron Detailing – Manufactured using premium materials for excellent durability, heat retention, and long-lasting performance.

*External Air Kit is an optional extra.

Installation Manual and Operating Instructions

Prior to purchasing one of the Stovax family of stoves, they require customers to confirm that they have read the statement in the warranty tab which highlights the importance of buying from an approved dealer like Glowing Embers and the importance of using a local showroom and/or fitter to provide proper pre-installation advice and professional installation. As an approved Stovax dealer we ask all customers confirm that they have read the statement prior to purchase by ticking the box above the Add to Basket button.

Technical Details

SKUTSTV-CMF-BSVX-NC5W
BrandStovax
StyleTraditional
Modern
TypeFree Standing Stove
ConstructionCast Iron & Steel
Fuel TypeMulti Fuel
Heat Output5 kW
DEFRA ApprovedYes
EcoDesign ReadyYes
Energy Efficiency RatingA
Stove Efficiency79%
Weight124 kg

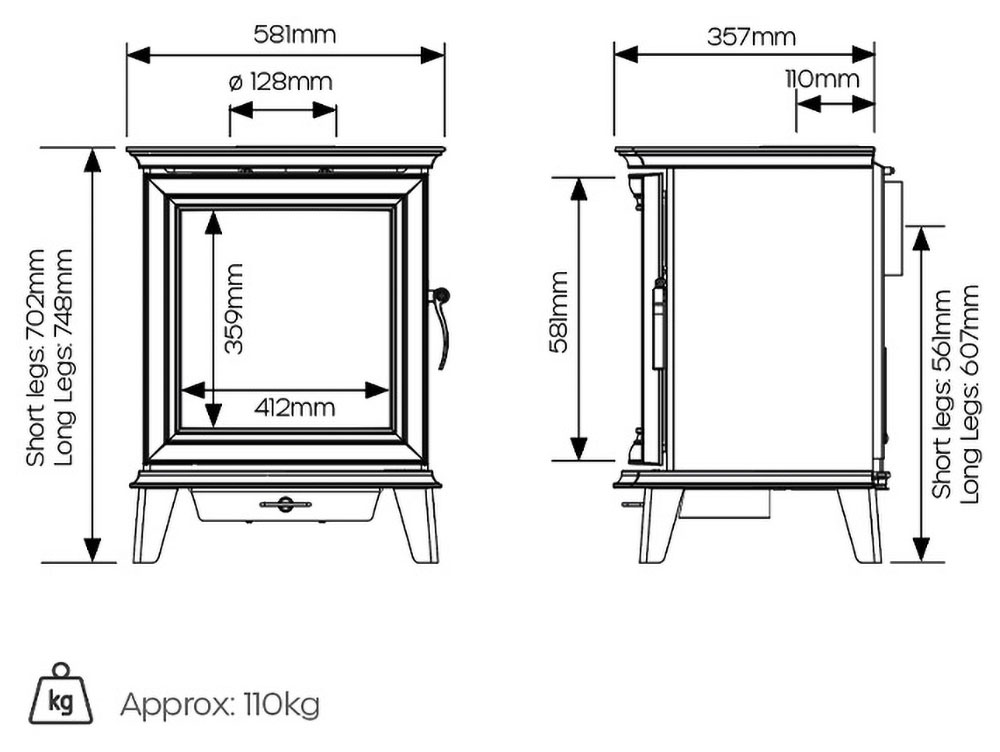

External DimensionsH702 x W581 x D357 mm
Max. Log Length400 mm
Flue Outlet LocationTop / Rear
Flue Outlet Diameter5" (128 mm)
Distance from Sides to Combustibles250 mm
Distance from Rear to Combustibles50 mm
ConvectionYes
Primary AirYes
Secondary AirYes
Tertiary AirYes
ColourBlack
Suitable for 12mm HearthYes
Warranty10 year(s)

Manufacturer: Stovax

Stovax is a British company dedicated to the development of high quality stoves, fireplaces, flue systems and associated accessories. Over the past 37 years, Stovax has grown to become one of Europe’s largest and most respected stove and fireplace manufacturers, constantly building on a reputation for superior craftsmanship, high quality materials, designer-led aesthetics and technical innovation.

Warranty Details

It's important to know what requirements need to be met in order to qualify for the 7-year warranty, as well as being aware of exactly what it covers.

To receive your Stovax Stove or Fireplace Extended Warranty you must have purchased from an authorised stockist within our Expert Retailer Network and your Warranty registered with Stovax within one month of the installation date. The commencement date for the warranty period is the date of installation. Proof of purchase, commissioning and servicing will be required in the event of a Warranty claim.

To register your warranty please click on the following link:

Warranty Registration

Stove Options

Stove Glass Accidental Damage Cover

Replacing damaged stove glass is something most stove owners will be familiar with, be it by closing the door on a protruding log, over-tightening the glass retaining clips or the natural heat expansion of the door, chances are you have had to purchase replacement glass for your wood burning stove at least once.

By adding Glowing Embers' Accidental Damage Cover, you have peace of mind that the potentially costly process of cutting and shipping a replacement glass is covered for when those accidental breakages occur.

Terms & Conditions

Glass Protection covers you for cracked or smashed stove glass for the period of time that you select. We cover you for accidental breakage for any reason for the length of time you selected but doesn't cover for any consequential loss or installation costs. Installation is usually an easy process, and our team can talk you through it. To claim against this protection, simply send us an email prior to the expiration date (either 1 or two years from the purchase date, depending upon which option you pick) with a photo clearly showing your stove with the broken glass. We may require measurements or a template from you to cut the replacement glass accurately and your provision of this when required is conditional on our fulfilment of this protection. The protection covers you for one replacement only within the set period, additional breakages (outside of breakage on delivery which will be covered free of charge) will fall outside of this protection. This only covers flat glass cut by Glowing Embers and does not cover curved or printed glass.

Stove Fitting Kit

5" (125mm) Fitting Kit

Essential components for any stove installation into an existing chimney, this Fitting Kit for stoves with a 5" (125mm) diameter outlet collar includes an 800mm x 400mm Register Plate (Chimney Closure Plate), 5" Reducing Plate and a 1000mm length of leading brand Vitreous Enamelled Stove Pipe in 5" internal diameter.

Sited above the stove, the metal Register Plate sits on - or can be screwed up to - the 4 supplied brackets and features a pre-cut central hole (reduced to 5" diameter when used with the provided Reducing Plate) for the Stove Pipe to pass through, into the chimney cavity. This plate is easily cut to your required size and not only prevents debris or insulating granules from falling down the chimney, but also deflects heat rising from the stove into the room. The 1000mm length of leading brand Vitreous Enamelled Stove Pipe has a reduced male connection which must be fitted inside the outlet collar of the stove and sealed with our Vitcas or Kos Fire Cements, Envirograf Silicone Sealant or Heat Resistant Stove Rope. The traditional finish of our Stove Pipes not only perfectly match the body of the stove but can also withstand the heat from the burner without blemishing the finish of the flue.

6" (150mm) Fitting Kit

Essential components for any stove installation into an existing chimney, this Fitting Kit for stoves with a 6" (150mm) diameter outlet collar includes an 800mm x 400mm Register Plate (Chimney Closure Plate) and a 1000mm length of leading brand Vitreous Enamelled Stove Pipe in 6" internal diameter.

Sited above the stove, the metal Register Plate sits on - or can be screwed up to - the 4 supplied brackets and features a pre-cut 6" central hole for the Stove Pipe to pass through, into the chimney cavity. This plate is easily cut to your required size and not only prevents debris or insulating granules from falling down the chimney, but also deflects heat rising from the stove into the room. The 1000mm length of leading brand Vitreous Enamelled Stove Pipe has a reduced male connection which must be fitted inside the outlet collar of the stove and sealed with our Vitcas or Kos Fire Cements, Envirograf Silicone Sealant or Heat Resistant Stove Rope. The traditional finish of our Stove Pipes not only perfectly match the body of the stove but can also withstand the heat from the burner without blemishing the finish of the flue.

7" (175mm) Fitting Kit

Essential components for any stove installation into an existing chimney, this Fitting Kit for stoves with a 7" (175mm) diameter outlet collar includes a 1200mm x 600mm Register Plate (Chimney Closure Plate) and a 1000mm length of leading brand Vitreous Enamelled Stove Pipe in 7" internal diameter.

Sited above the stove, the metal Plain Register Plate sits on - or can be screwed up to - the 4 supplied brackets and simply requires a 7" hole cutting in it for the Stove Pipe to pass through, into the chimney cavity. This plate is easily cut to your required size and not only prevents debris or insulating granules from falling down the chimney, but also deflects heat rising from the stove into the room. The 1000mm length of leading brand Vitreous Enamelled Stove Pipe has a reduced male connection which must be fitted inside the outlet collar of the stove and sealed with our Vitcas or Kos Fire Cements, Envirograf Silicone Sealant or Heat Resistant Stove Rope. The traditional finish of our Stove Pipes not only perfectly match the body of the stove but can also withstand the heat from the burner without blemishing the finish of the flue.

8" (200mm) Fitting Kit

Essential components for any stove installation into an existing chimney, this Fitting Kit for stoves with an 8" (200mm) diameter outlet collar includes a 1200mm x 600mm Register Plate (Chimney Closure Plate) and a 1000mm length of leading brand Vitreous Enamelled Stove Pipe in 8" internal diameter.

Sited above the stove, the metal Plain Register Plate sits on - or can be screwed up to - the 4 supplied brackets and simply requires an 8" hole cutting in it for the Stove Pipe to pass through, into the chimney cavity. This plate is easily cut to your required size and not only prevents debris or insulating granules from falling down the chimney, but also deflects heat rising from the stove into the room. The 1000mm length of leading brand Vitreous Enamelled Stove Pipe has a reduced male connection which must be fitted inside the outlet collar of the stove and sealed with our Vitcas or Kos Fire Cements, Envirograf Silicone Sealant or Heat Resistant Stove Rope. The traditional finish of our Stove Pipes not only perfectly match the body of the stove but can also withstand the heat from the burner without blemishing the finish of the flue.

Flexible Chimney Liner Kit

5" (125mm) Flexible Chimney Liner Kit

Simply select your required length of Flexible Chimney Liner to complete your stove installation into an existing chimney with our essential Chimney Liner Install Kit.

This kit includes the Adapter to connect to 5" diameter Stove Pipe, your choice of 6-12m of 5" Helix twin-skinned, 316 grade, stainless Flexible Chimney Liner (suitable for use with all solid fuels, gas and oil and comes with a lifetime of the appliance warranty), a stainless Hanging Cowl with Bird Guard Mesh for chimney pots and a building regulation required Chimney Notice Plate.

6" (150mm) Flexible Chimney Liner Kit

Simply select your required length of Flexible Chimney Liner to complete your stove installation into an existing chimney with our essential Chimney Liner Install Kit.

This kit includes the Adapter to connect to 6" diameter Stove Pipe, your choice of 6-12m of 6" Helix twin-skinned, 316 grade, stainless Flexible Chimney Liner (suitable for use with all solid fuels, gas and oil and comes with a lifetime of the appliance warranty), a stainless Hanging Cowl with Bird Guard Mesh for chimney pots and a building regulation required Chimney Notice Plate.

8" (200mm) Flexible Chimney Liner Kit

Simply select your required length of Flexible Chimney Liner to complete your stove installation into an existing chimney with our essential Chimney Liner Install Kit.

This kit includes the Adapter to connect to 8" diameter Stove Pipe, your choice of 6-12m of 8" Helix twin-skinned, 316 grade, stainless Flexible Chimney Liner (suitable for use with all solid fuels, gas and oil and comes with a lifetime of the appliance warranty), a stainless Hanging Cowl with Bird Guard Mesh for chimney pots and a building regulation required Chimney Notice Plate.

Stove Essential Extras

Carbon Monoxide (CO) Alarm

Legal requirement for all stove installations, add an easy to fit CO Alarm to your order so you're ready for a safe stove installation. Free standing or wall mounted (see our Carbon Monoxide (CO) guide for correct placement), this alarm comes supplied with batteries for a minimum seven years continuous operation and meets the requirements of Building Regulations Approved Document J.

Stove Pipe Thermometer

Add our simple to read Stove Pipe Thermometer to your order and start operating your stove at its optimum performance from day one. Intended for fixing to the first length of single wall stove pipe, this thermometer accurately displays the burning temperature in both °C and °F as well as illustrating temperature zones for best operation, too hot and too low.

500g Fire Cement

Ideal for a variety of applications, Fire Cement is an essential extra for all stoves as it is required for sealing stove pipe, outlet collar and Flex Adapter connections as well as around Register Plates to prevent loss of gases and heat from the system. This ready mixed black Fire Cement creates smoke tight seals once fully cured.

Double Socket Adapter

An essential for any European model of stove, you simply won't be able to connect your flue pipe without our Double Socket Adapter. Designed to secure over the stove's outlet collar (which will be a male spigot), the Adapter converts it to a female socket to allow your Stove Pipe or Twin Wall Adapter to connect securely and safely.

(Acorn) Black Stove Companion Set

Don't forget to add a Companion Set to your order as you'll wish you have one when first lighting the stove! This 530mm tall, traditionally designed set is finished in black and features all the essential fireside tools you need suspended above a sturdy base - Tongs for positioning logs inside the firebox, a shovel and brush for cleanly removing ash and a poker to stoke the fire.
