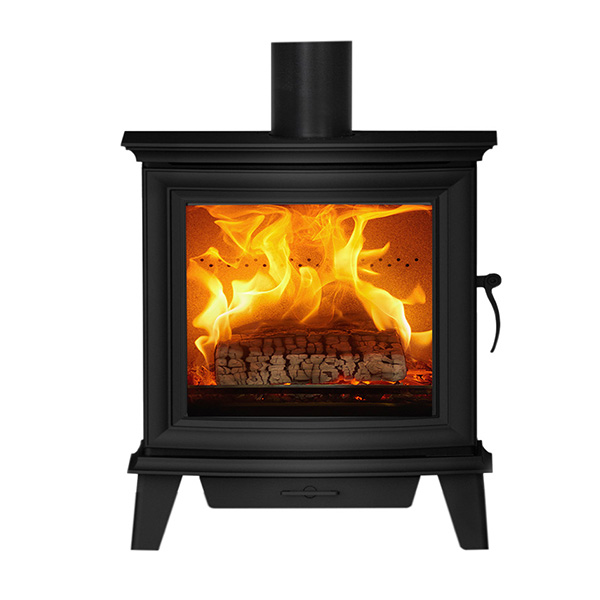

Stovax Chesterfield 5 – 5kw Defra Wood Burning Stove

£2,035.13 Inc VAT

Add to Cart
Stovax Chesterfield 5 - 5kw Defra Wood Burning Stove
Stovax Chesterfield 5 - 5kw Defra Wood Burning Stove
£2,035.13 Inc VAT

Optional Extras

Stove Fitting Kit

* inc. 1m stove pipe + 800x400mm register plate

Flexible Chimney Liner Kit

* inc. chimney flue liner, adapter, cowl + notice plate

Stove Glass - Accidental Damage Cover

Display Option

Total: £2,035.13

Delivery

  • Free Delivery
  • Available for Click & Collect - we'll email when ready

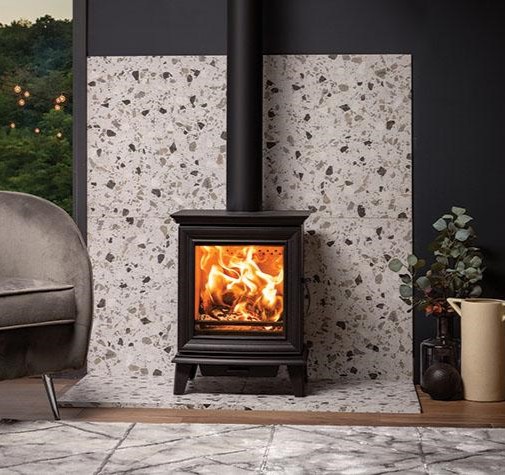

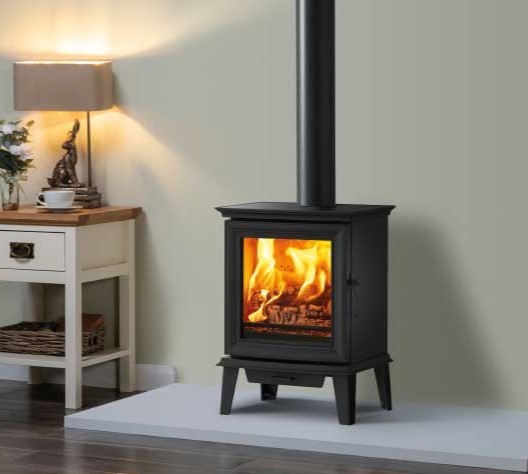

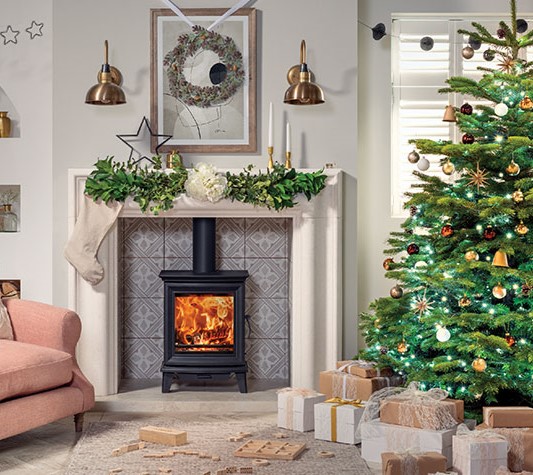

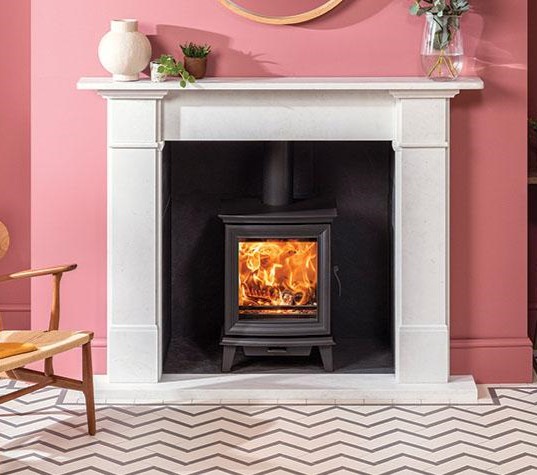

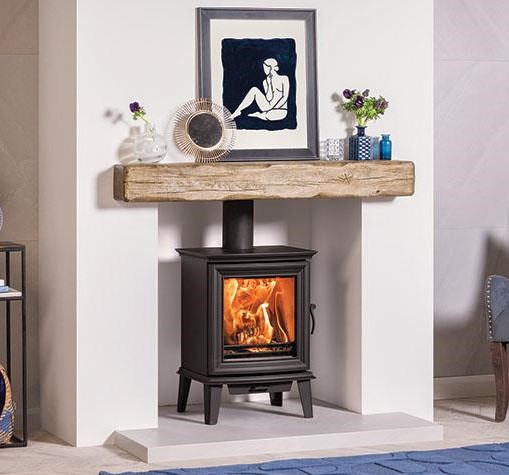

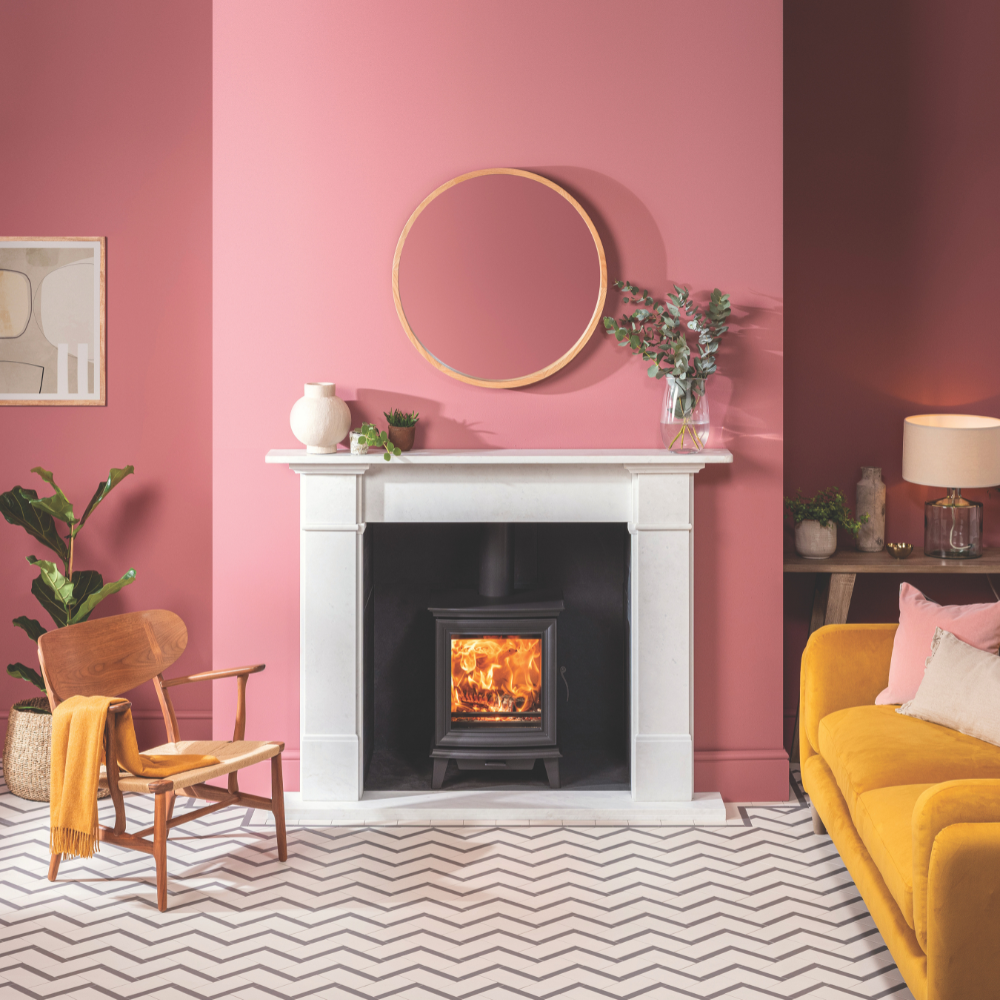

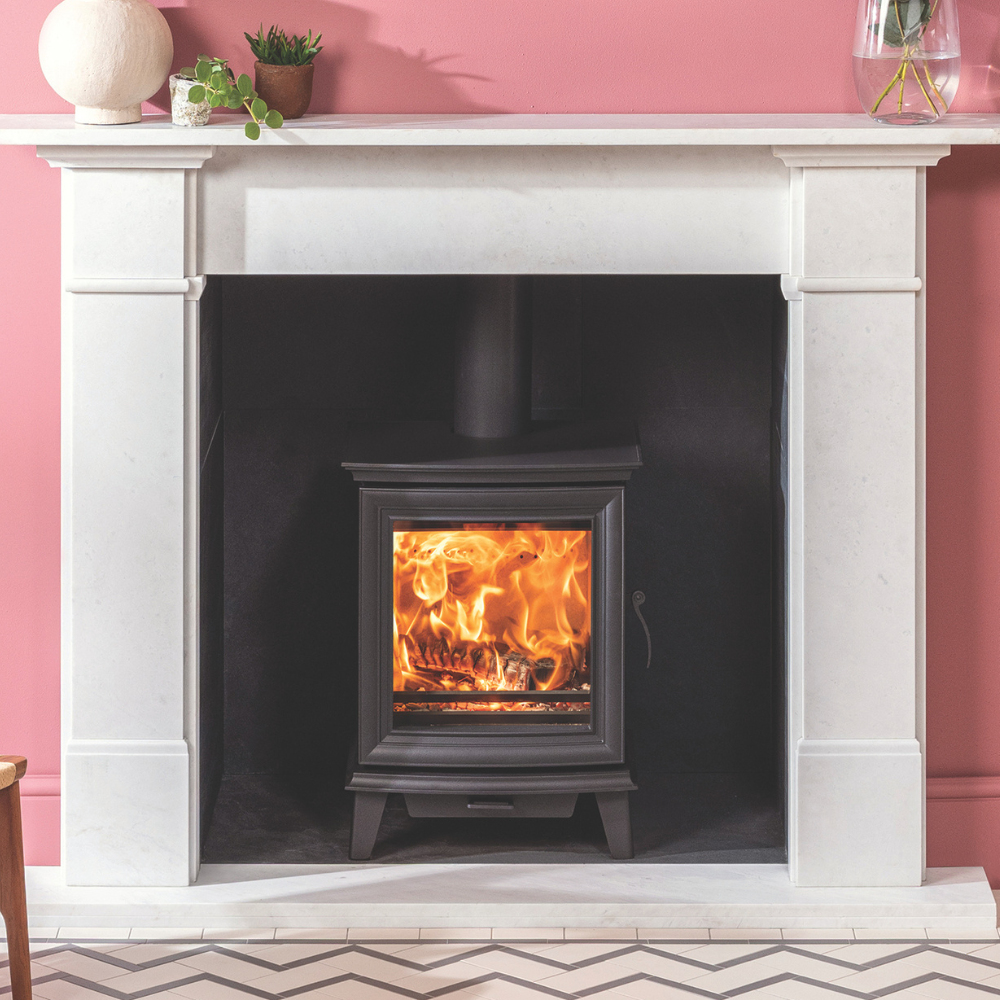

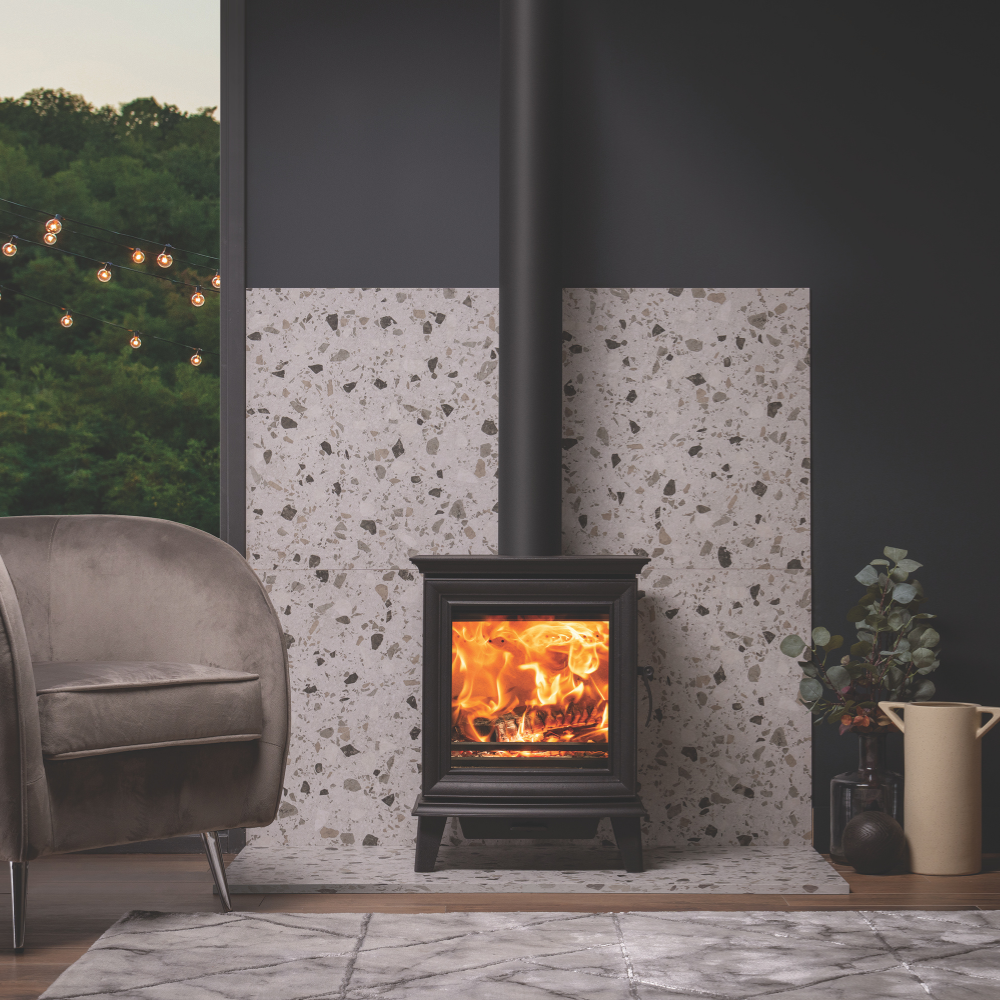

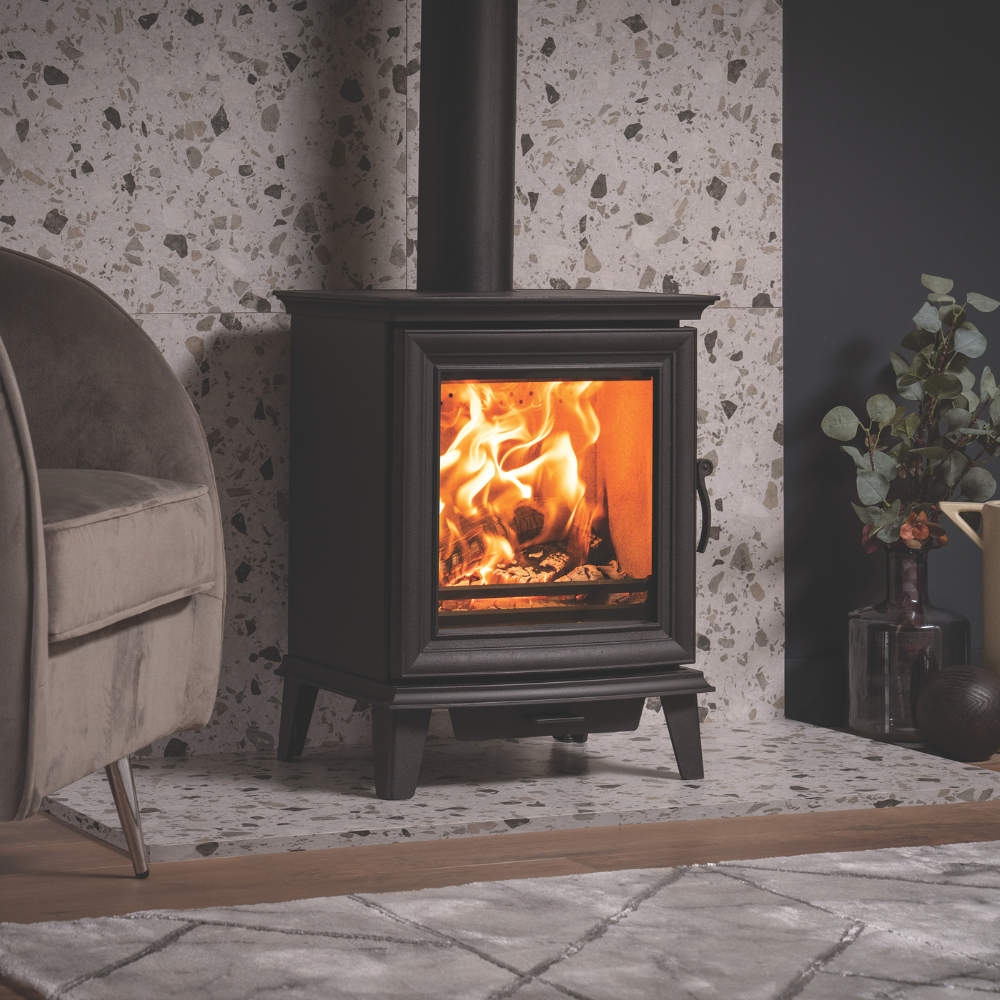

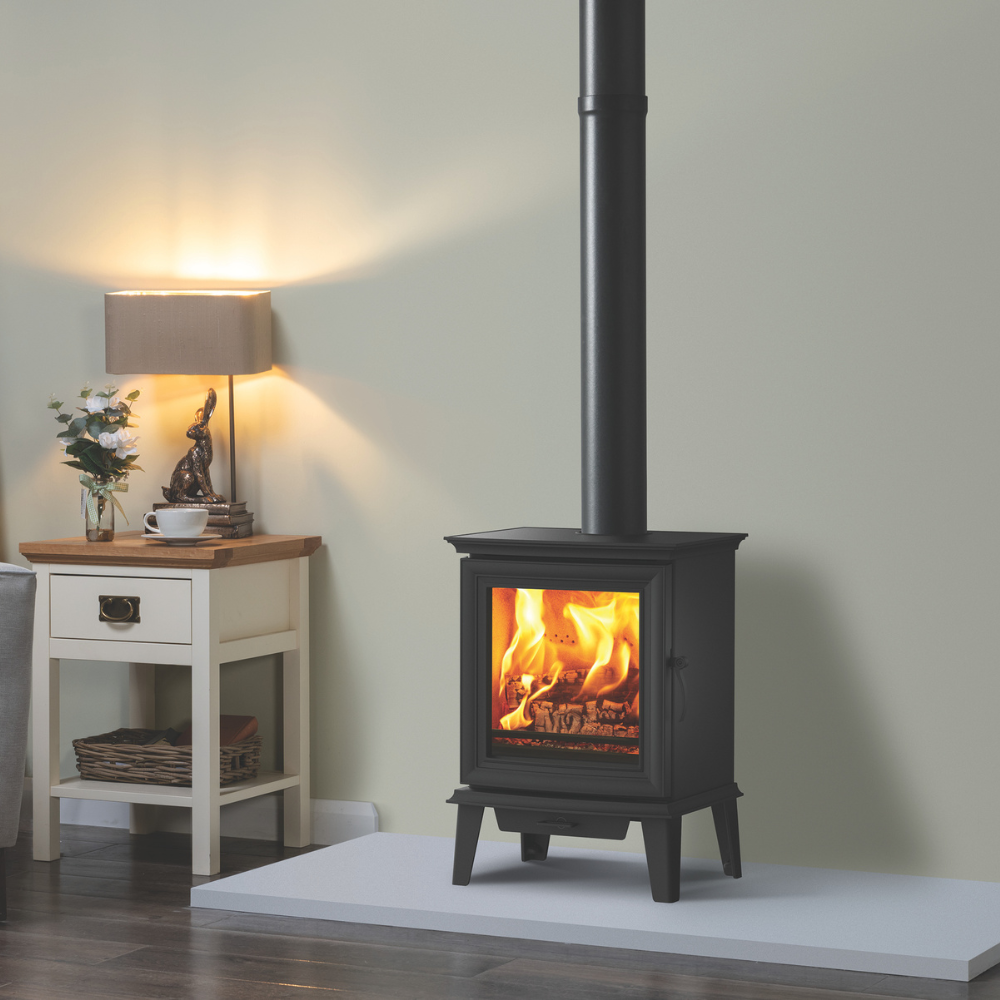

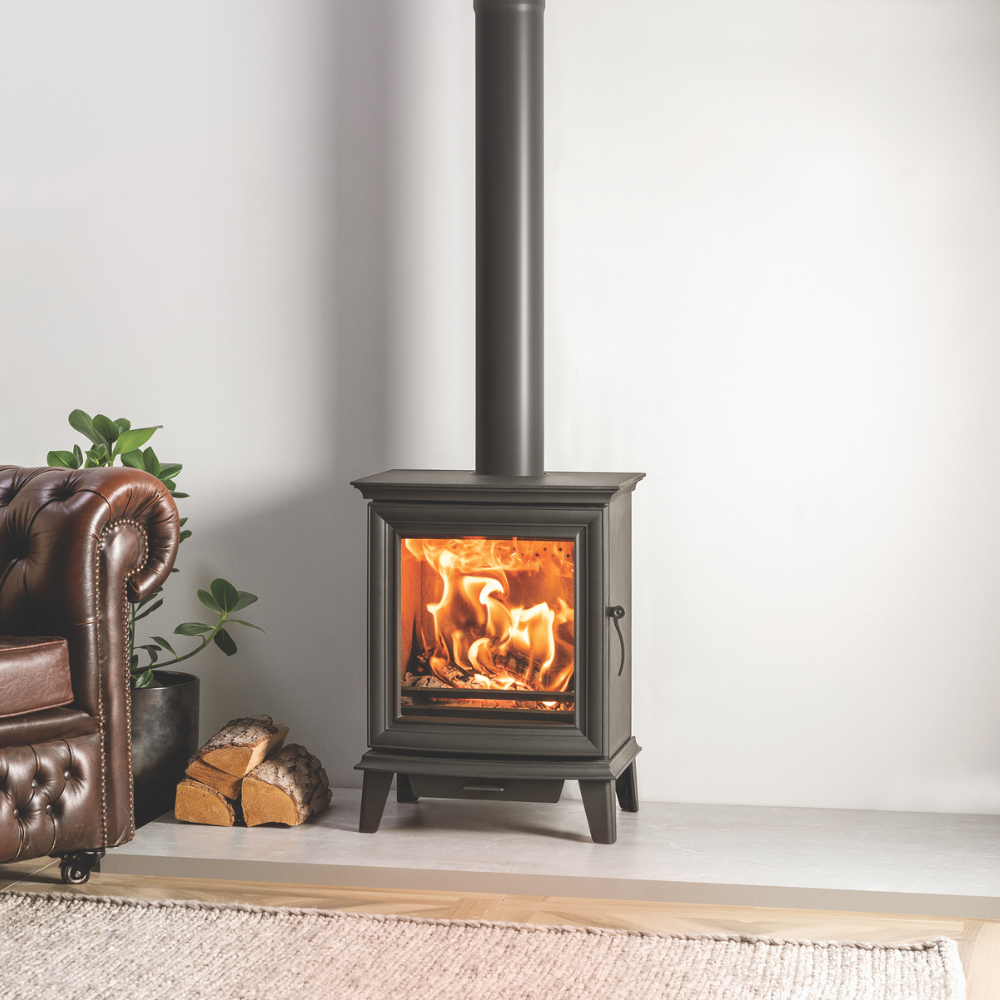

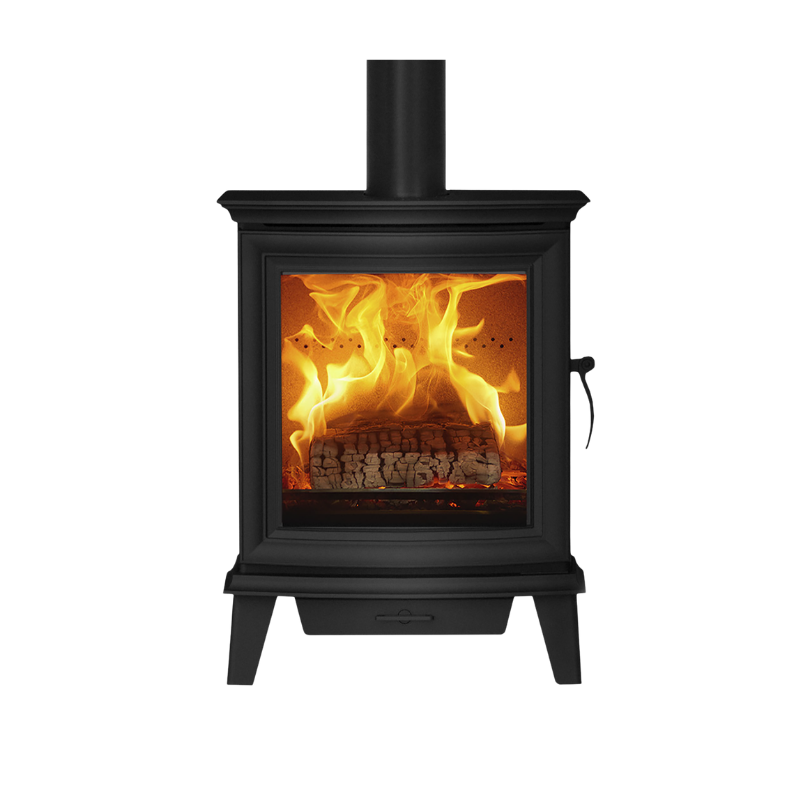

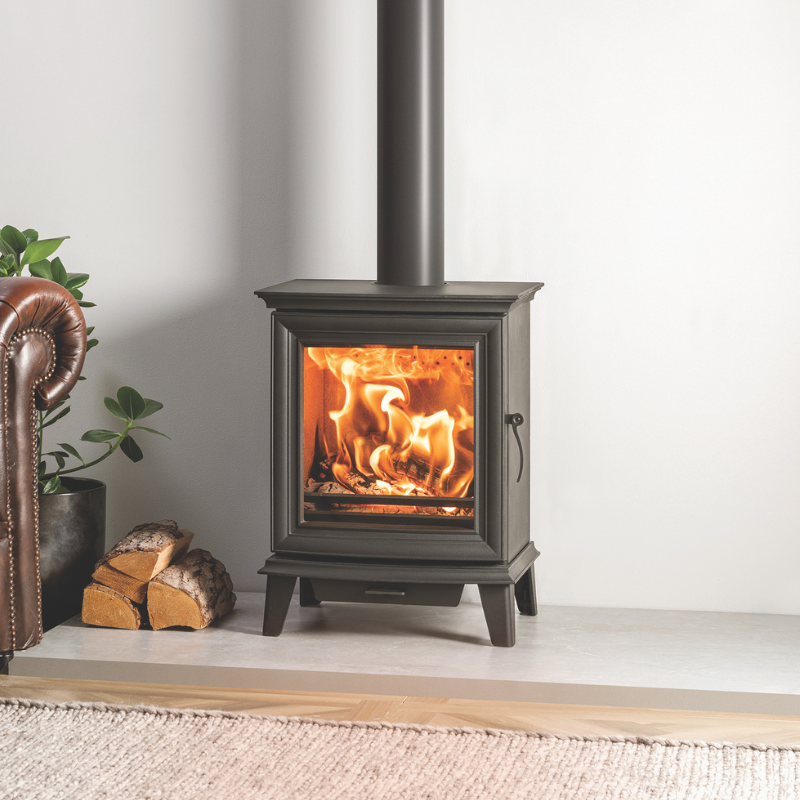

Add timeless elegance and efficient heating to your home with the Stovax Chesterfield 5 Wood Burning Stove. Designed with classic cast iron styling and refined detailing, this stove blends seamlessly into both traditional and modern interiors while delivering dependable performance. With a 5kW nominal heat output, the Chesterfield 5 is perfectly suited to small and medium-sized rooms, providing consistent warmth without the need for additional ventilation in most cases. Its advanced combustion system ensures clean, efficient wood burning, while the large viewing window offers a captivating flame picture to enhance any living space. DEFRA approved for use in smoke control areas and Eco Design compliant, the Chesterfield 5 combines environmental responsibility with practical, everyday usability—making it an ideal choice for urban and rural homes alike.

Key Features

  • 5kW Nominal Heat Output – Delivers efficient and consistent heating with an operating range of 2.5kW–7kW, making it ideal for small to medium-sized rooms without typically requiring additional ventilation.
  • DEFRA Approved for Smoke Control Areas – DEFRA exempt as standard, allowing you to legally burn wood in smoke-controlled zones while maintaining clean combustion and reduced emissions.
  • Dedicated Wood Burning Stove – Specifically designed for burning seasoned logs, delivering optimised combustion performance, excellent flame visuals, and improved efficiency.
  • Elegant Traditional Styling – Features beautifully detailed cast iron styling on the door and top plate, blending classic aesthetics with contemporary engineering.
  • Large Flame Viewing Window – The expansive ceramic glass window provides impressive flame visuals, creating a warm and inviting focal point within the home.
  • High Efficiency Performance – Achieves efficiency levels of up to 77.6%–80% with an A/A+ energy rating, helping maximise heat output while reducing wood consumption and running costs.
  • Convector Heat System – The integrated convector design improves heat circulation around the room while reducing the distance required to combustible materials for greater installation flexibility.
  • Cleanburn & Airwash Technology – Advanced combustion systems improve fuel efficiency and reduce emissions, while the Airwash system helps keep the glass cleaner for a consistently clear flame picture.
  • Optional External Air Kit – Can be connected to an external air supply, making it suitable for modern airtight homes and improving combustion efficiency.
  • Large Log Capacity – Accommodates logs up to 330mm in length, allowing for longer burn times and reduced refuelling frequency.
  • Robust Steel & Cast Iron Construction – Built using a durable steel body with cast iron detailing for excellent longevity, heat retention, and premium build quality.
  • Top or Rear Flue Outlet – Flexible 5” flue outlet positioning allows for easier installation across a variety of chimney and fireplace configurations.
  • 12mm Hearth Compatible & Eco Design Ready – Suitable for installation on a 12mm hearth and designed to exceed modern Eco Design standards for cleaner, environmentally responsible heating.

*External Air Kit is an optional extra.

Installation Manual and Operating Instructions

Prior to purchasing one of the Stovax family of stoves, they require customers to confirm that they have read the statement in the warranty tab which highlights the importance of buying from an approved dealer like Glowing Embers and the importance of using a local showroom and/or fitter to provide proper pre-installation advice and professional installation. As an approved Stovax dealer we ask all customers confirm that they have read the statement prior to purchase by ticking the box above the Add to Basket button.

Technical Details

SKUTSTV-CWB-BSVX-NCE5
BrandStovax
StyleTraditional
Modern
TypeFree Standing Stove
ConstructionCast Iron & Steel
Fuel TypeWood Only
Heat Output5 kW
DEFRA ApprovedYes
EcoDesign ReadyYes
Energy Efficiency RatingA
Stove Efficiency80%
Weight102 kg

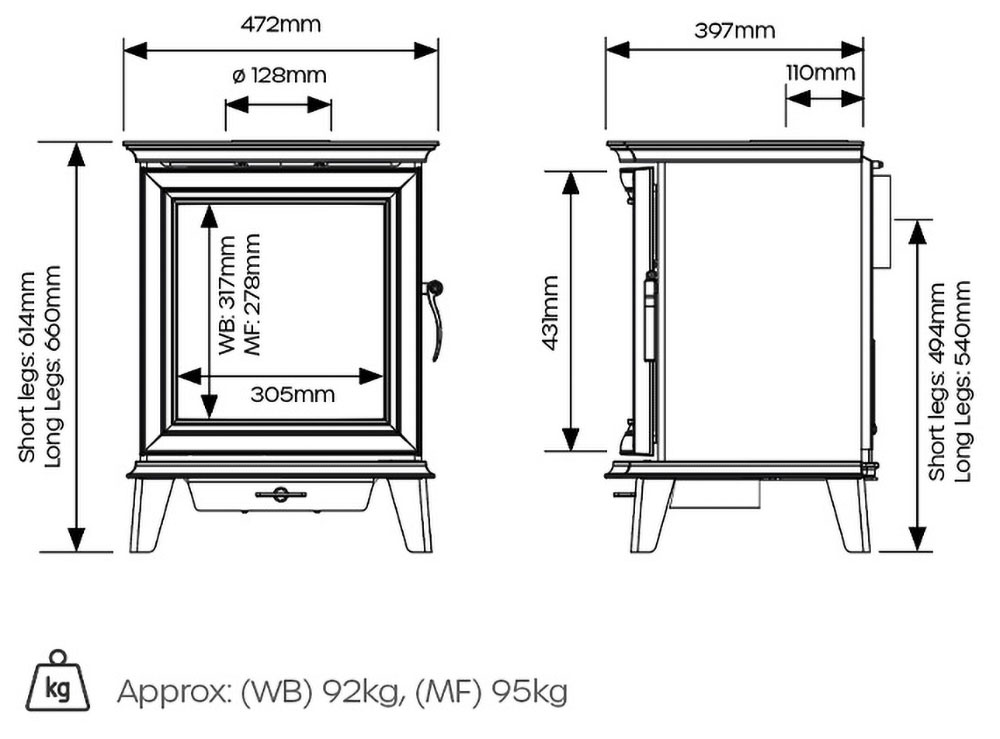

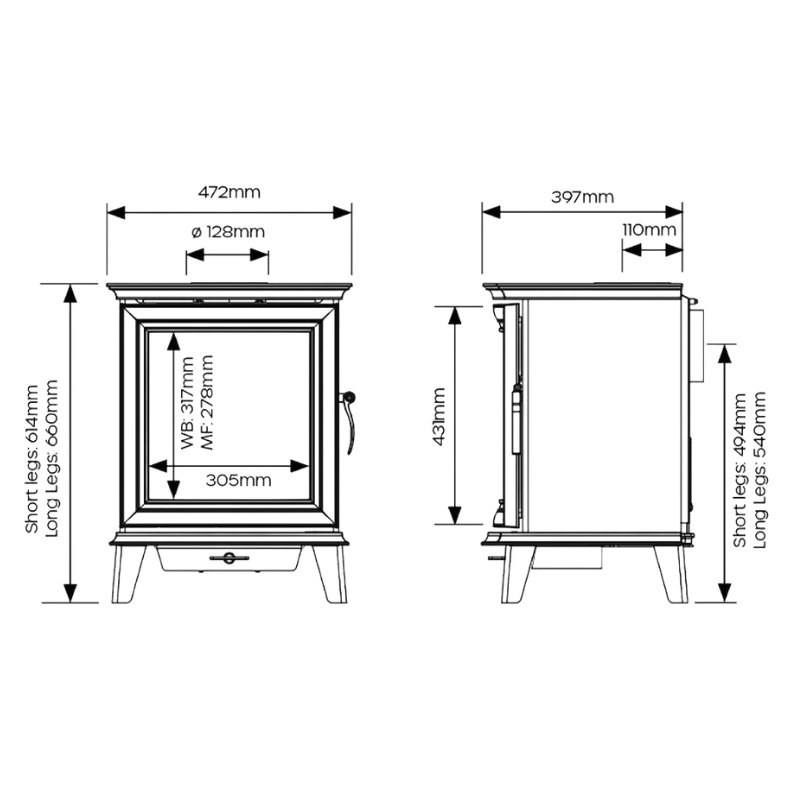

External DimensionsH614 x W472 x D397 mm
Max. Log Length300 mm
Flue Outlet LocationTop / Rear
Flue Outlet Diameter5" (128 mm)
Distance from Sides to Combustibles300 mm
Distance from Rear to Combustibles50 mm
ConvectionYes
Primary AirYes
Secondary AirYes
Tertiary AirYes
ColourBlack
Suitable for 12mm HearthYes
Warranty10 year(s)

Manufacturer: Stovax

Stovax is a British company dedicated to the development of high quality stoves, fireplaces, flue systems and associated accessories. Over the past 37 years, Stovax has grown to become one of Europe’s largest and most respected stove and fireplace manufacturers, constantly building on a reputation for superior craftsmanship, high quality materials, designer-led aesthetics and technical innovation.

Warranty Details

It's important to know what requirements need to be met in order to qualify for the 7-year warranty, as well as being aware of exactly what it covers.

To receive your Stovax Stove or Fireplace Extended Warranty you must have purchased from an authorised stockist within our Expert Retailer Network and your Warranty registered with Stovax within one month of the installation date. The commencement date for the warranty period is the date of installation. Proof of purchase, commissioning and servicing will be required in the event of a Warranty claim.

To register your warranty please click on the following link:

Warranty Registration

Stove Options

Stove Glass Accidental Damage Cover

Replacing damaged stove glass is something most stove owners will be familiar with, be it by closing the door on a protruding log, over-tightening the glass retaining clips or the natural heat expansion of the door, chances are you have had to purchase replacement glass for your wood burning stove at least once.

By adding Glowing Embers' Accidental Damage Cover, you have peace of mind that the potentially costly process of cutting and shipping a replacement glass is covered for when those accidental breakages occur.

Terms & Conditions

Glass Protection covers you for cracked or smashed stove glass for the period of time that you select. We cover you for accidental breakage for any reason for the length of time you selected but doesn't cover for any consequential loss or installation costs. Installation is usually an easy process, and our team can talk you through it. To claim against this protection, simply send us an email prior to the expiration date (either 1 or two years from the purchase date, depending upon which option you pick) with a photo clearly showing your stove with the broken glass. We may require measurements or a template from you to cut the replacement glass accurately and your provision of this when required is conditional on our fulfilment of this protection. The protection covers you for one replacement only within the set period, additional breakages (outside of breakage on delivery which will be covered free of charge) will fall outside of this protection. This only covers flat glass cut by Glowing Embers and does not cover curved or printed glass.

Stove Fitting Kit

5" (125mm) Fitting Kit

Essential components for any stove installation into an existing chimney, this Fitting Kit for stoves with a 5" (125mm) diameter outlet collar includes an 800mm x 400mm Register Plate (Chimney Closure Plate), 5" Reducing Plate and a 1000mm length of leading brand Vitreous Enamelled Stove Pipe in 5" internal diameter.

Sited above the stove, the metal Register Plate sits on - or can be screwed up to - the 4 supplied brackets and features a pre-cut central hole (reduced to 5" diameter when used with the provided Reducing Plate) for the Stove Pipe to pass through, into the chimney cavity. This plate is easily cut to your required size and not only prevents debris or insulating granules from falling down the chimney, but also deflects heat rising from the stove into the room. The 1000mm length of leading brand Vitreous Enamelled Stove Pipe has a reduced male connection which must be fitted inside the outlet collar of the stove and sealed with our Vitcas or Kos Fire Cements, Envirograf Silicone Sealant or Heat Resistant Stove Rope. The traditional finish of our Stove Pipes not only perfectly match the body of the stove but can also withstand the heat from the burner without blemishing the finish of the flue.

6" (150mm) Fitting Kit

Essential components for any stove installation into an existing chimney, this Fitting Kit for stoves with a 6" (150mm) diameter outlet collar includes an 800mm x 400mm Register Plate (Chimney Closure Plate) and a 1000mm length of leading brand Vitreous Enamelled Stove Pipe in 6" internal diameter.

Sited above the stove, the metal Register Plate sits on - or can be screwed up to - the 4 supplied brackets and features a pre-cut 6" central hole for the Stove Pipe to pass through, into the chimney cavity. This plate is easily cut to your required size and not only prevents debris or insulating granules from falling down the chimney, but also deflects heat rising from the stove into the room. The 1000mm length of leading brand Vitreous Enamelled Stove Pipe has a reduced male connection which must be fitted inside the outlet collar of the stove and sealed with our Vitcas or Kos Fire Cements, Envirograf Silicone Sealant or Heat Resistant Stove Rope. The traditional finish of our Stove Pipes not only perfectly match the body of the stove but can also withstand the heat from the burner without blemishing the finish of the flue.

7" (175mm) Fitting Kit

Essential components for any stove installation into an existing chimney, this Fitting Kit for stoves with a 7" (175mm) diameter outlet collar includes a 1200mm x 600mm Register Plate (Chimney Closure Plate) and a 1000mm length of leading brand Vitreous Enamelled Stove Pipe in 7" internal diameter.

Sited above the stove, the metal Plain Register Plate sits on - or can be screwed up to - the 4 supplied brackets and simply requires a 7" hole cutting in it for the Stove Pipe to pass through, into the chimney cavity. This plate is easily cut to your required size and not only prevents debris or insulating granules from falling down the chimney, but also deflects heat rising from the stove into the room. The 1000mm length of leading brand Vitreous Enamelled Stove Pipe has a reduced male connection which must be fitted inside the outlet collar of the stove and sealed with our Vitcas or Kos Fire Cements, Envirograf Silicone Sealant or Heat Resistant Stove Rope. The traditional finish of our Stove Pipes not only perfectly match the body of the stove but can also withstand the heat from the burner without blemishing the finish of the flue.

8" (200mm) Fitting Kit

Essential components for any stove installation into an existing chimney, this Fitting Kit for stoves with an 8" (200mm) diameter outlet collar includes a 1200mm x 600mm Register Plate (Chimney Closure Plate) and a 1000mm length of leading brand Vitreous Enamelled Stove Pipe in 8" internal diameter.

Sited above the stove, the metal Plain Register Plate sits on - or can be screwed up to - the 4 supplied brackets and simply requires an 8" hole cutting in it for the Stove Pipe to pass through, into the chimney cavity. This plate is easily cut to your required size and not only prevents debris or insulating granules from falling down the chimney, but also deflects heat rising from the stove into the room. The 1000mm length of leading brand Vitreous Enamelled Stove Pipe has a reduced male connection which must be fitted inside the outlet collar of the stove and sealed with our Vitcas or Kos Fire Cements, Envirograf Silicone Sealant or Heat Resistant Stove Rope. The traditional finish of our Stove Pipes not only perfectly match the body of the stove but can also withstand the heat from the burner without blemishing the finish of the flue.

Flexible Chimney Liner Kit

5" (125mm) Flexible Chimney Liner Kit

Simply select your required length of Flexible Chimney Liner to complete your stove installation into an existing chimney with our essential Chimney Liner Install Kit.

This kit includes the Adapter to connect to 5" diameter Stove Pipe, your choice of 6-12m of 5" Helix twin-skinned, 316 grade, stainless Flexible Chimney Liner (suitable for use with all solid fuels, gas and oil and comes with a lifetime of the appliance warranty), a stainless Hanging Cowl with Bird Guard Mesh for chimney pots and a building regulation required Chimney Notice Plate.

6" (150mm) Flexible Chimney Liner Kit

Simply select your required length of Flexible Chimney Liner to complete your stove installation into an existing chimney with our essential Chimney Liner Install Kit.

This kit includes the Adapter to connect to 6" diameter Stove Pipe, your choice of 6-12m of 6" Helix twin-skinned, 316 grade, stainless Flexible Chimney Liner (suitable for use with all solid fuels, gas and oil and comes with a lifetime of the appliance warranty), a stainless Hanging Cowl with Bird Guard Mesh for chimney pots and a building regulation required Chimney Notice Plate.

8" (200mm) Flexible Chimney Liner Kit

Simply select your required length of Flexible Chimney Liner to complete your stove installation into an existing chimney with our essential Chimney Liner Install Kit.

This kit includes the Adapter to connect to 8" diameter Stove Pipe, your choice of 6-12m of 8" Helix twin-skinned, 316 grade, stainless Flexible Chimney Liner (suitable for use with all solid fuels, gas and oil and comes with a lifetime of the appliance warranty), a stainless Hanging Cowl with Bird Guard Mesh for chimney pots and a building regulation required Chimney Notice Plate.

Stove Essential Extras

Carbon Monoxide (CO) Alarm

Legal requirement for all stove installations, add an easy to fit CO Alarm to your order so you're ready for a safe stove installation. Free standing or wall mounted (see our Carbon Monoxide (CO) guide for correct placement), this alarm comes supplied with batteries for a minimum seven years continuous operation and meets the requirements of Building Regulations Approved Document J.

Stove Pipe Thermometer

Add our simple to read Stove Pipe Thermometer to your order and start operating your stove at its optimum performance from day one. Intended for fixing to the first length of single wall stove pipe, this thermometer accurately displays the burning temperature in both °C and °F as well as illustrating temperature zones for best operation, too hot and too low.

500g Fire Cement

Ideal for a variety of applications, Fire Cement is an essential extra for all stoves as it is required for sealing stove pipe, outlet collar and Flex Adapter connections as well as around Register Plates to prevent loss of gases and heat from the system. This ready mixed black Fire Cement creates smoke tight seals once fully cured.

Double Socket Adapter

An essential for any European model of stove, you simply won't be able to connect your flue pipe without our Double Socket Adapter. Designed to secure over the stove's outlet collar (which will be a male spigot), the Adapter converts it to a female socket to allow your Stove Pipe or Twin Wall Adapter to connect securely and safely.

(Acorn) Black Stove Companion Set

Don't forget to add a Companion Set to your order as you'll wish you have one when first lighting the stove! This 530mm tall, traditionally designed set is finished in black and features all the essential fireside tools you need suspended above a sturdy base - Tongs for positioning logs inside the firebox, a shovel and brush for cleanly removing ash and a poker to stoke the fire.
