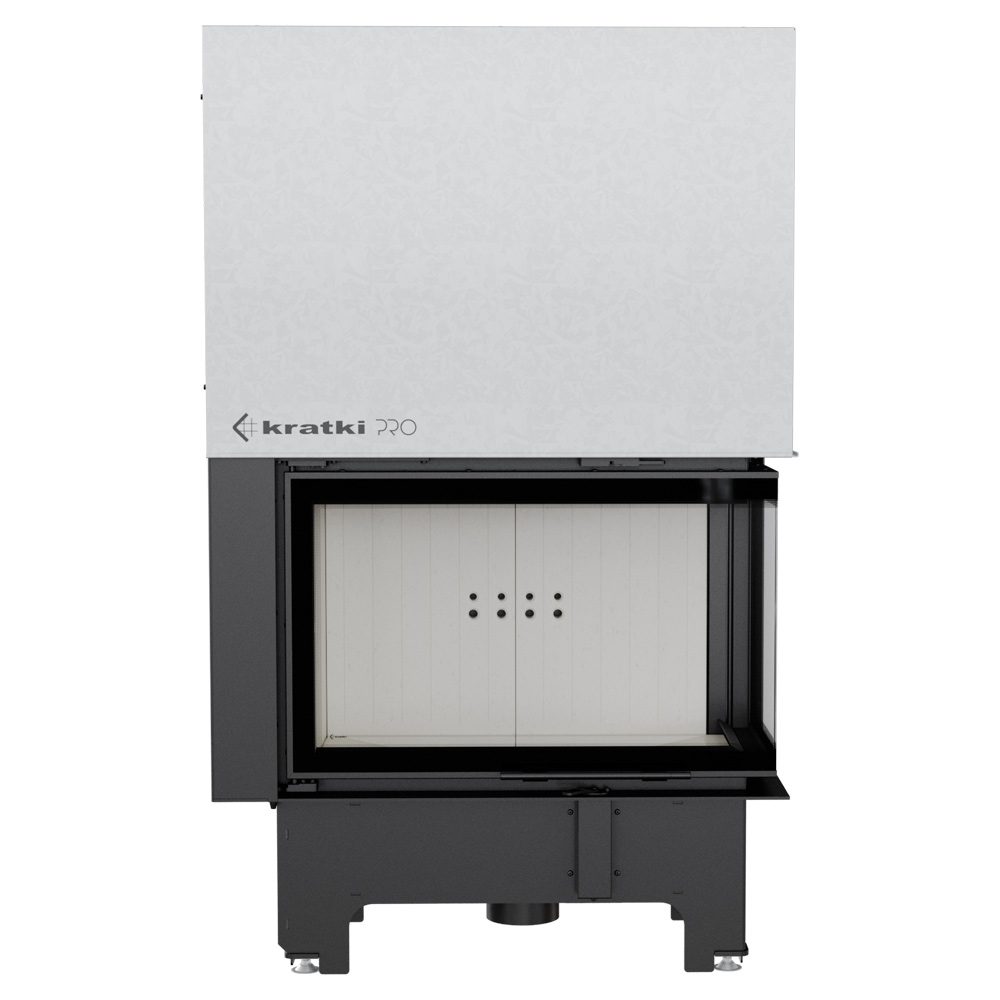

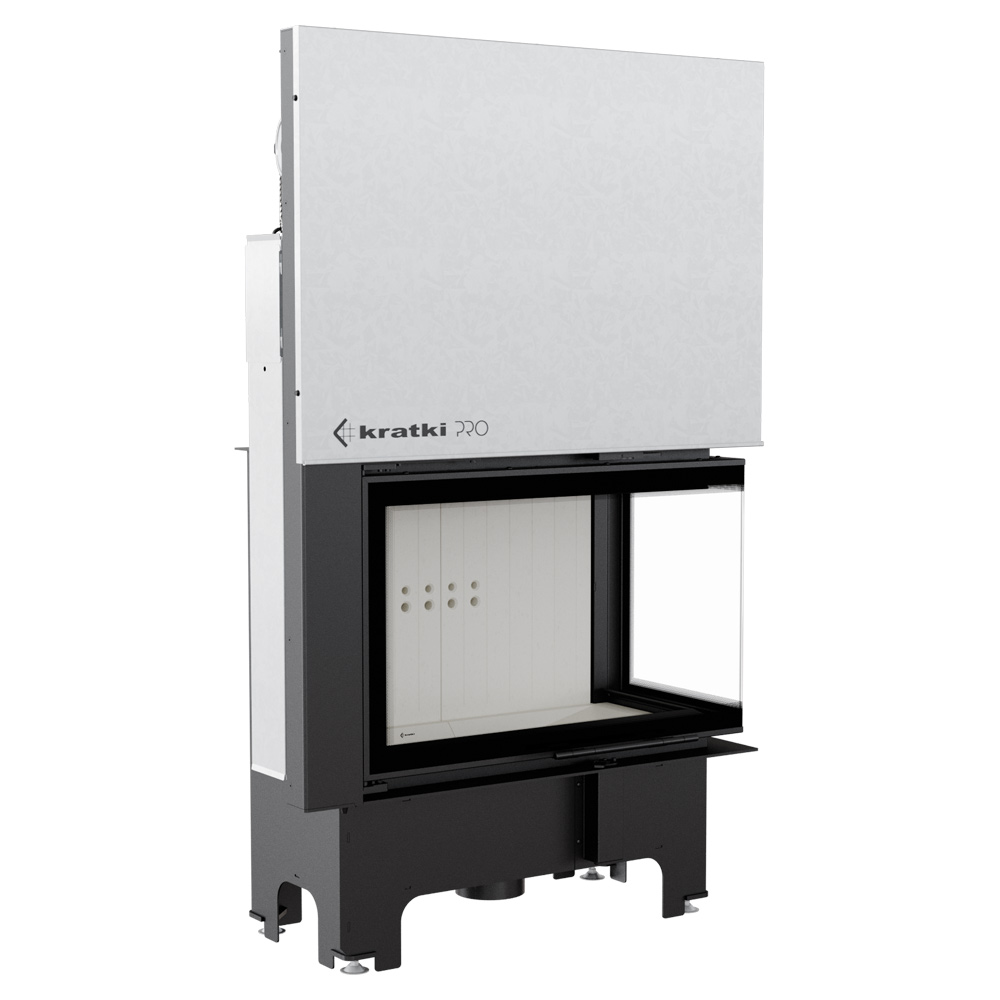

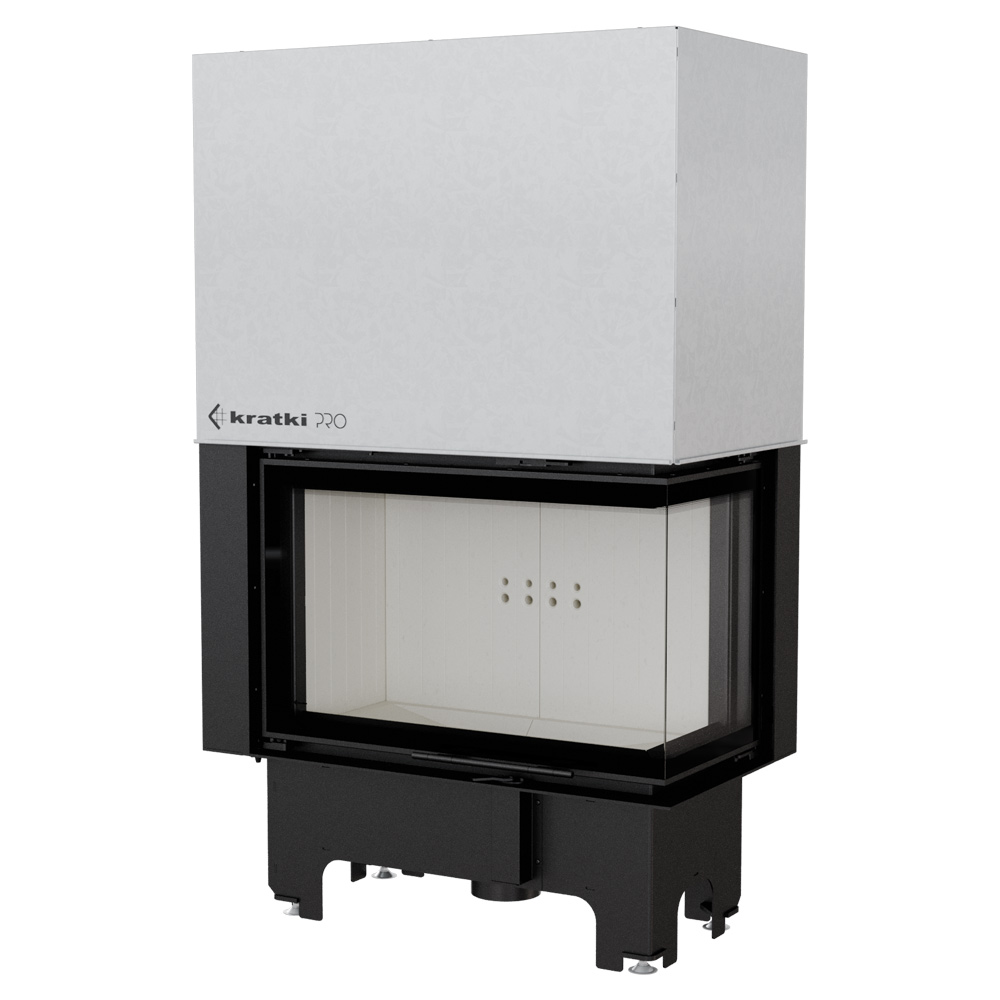

Kratki VN 810/410 - 14kw Inset Wood Burning Stove With Right Connected Side Glass & Guillotine Door - VNP/810/410
Free Delivery (Excl. Highlands and Islands)
Estimated Delivery 2-3 Weeks
No need to create an account to get delivery costs.
For a full delivery quote to your address, add the products you require to your basket and click the ‘View Contents’ button to see a full list of delivery options and costs for your entire order.
Technical Data
- Type:
- Inset
- Style:
- Modern
- Eco Ready:
- Yes
- Energy Efficiency Rating:
- A+
- Fuel:
- Wood Only
- Construction:
- Steel
- Output (kW):
- 14.00
- External Height (mm):
- 1509
- External Width (mm):
- 929
- External Depth (mm):
- 550
- Efficiency (%):
- 82.0
- Warranty:
- 5 year(s)
- Max Log Length (mm):
- 400
- Outlet Diameter (mm):
- 200
- Outlet Diameter (inches):
- 8
- Weight (kg):
- 261.0
Kratki VN 810/410 - 14kw Inset Wood Burning Stove With Right Connected Side Glass & Guillotine Door - VNP/810/410
The VN 810/410 combines efficient heating with innovative design features, offering a versatile and appealing heating solution that brings warmth and contemporary elegance to your home. With a substantial 14kw heat output, this wood-burning stove is perfect for larger rooms, ensuring a warm and cosy atmosphere. Its innovative design features a right connected side glass panel for an unobstructed view of the flames, and a unique guillotine door that slides upwards for convenient loading and firebox access.
All Kratki stoves come with a 5 year warranty period.
Key Features
- Eco Design Ready
- Energy Rating – A+
- Air Wash/Clean Glass System – Helps to Maintain the Glass Window Is Clear Of the Build Up of Soot
- Ash Drawer for Easy Ash Removal
MAXIMUM USE OF ENERGY
More efficient combustion and longer temperature maintenance is effect of TERMOTEC lining in combustion chamber, a heat accumulating material that increases the temperature in the furnace. In addition, its smooth, white surface looks impressive inside the fireplace.
Afterburning of fuel particles is due to two deflectors that extend the exhaust path. This process also increases the efficiency of combustion and guarantees better use of energy, and minimizes the emission of harmful substances into the atmosphere.
The insert has a horizontal flue, built in a high flue, which allows for additional heat recovery from fumes, and thus maximum energy use.
The device has a triple ventilation system for the combustion chamber, thanks to which wood burning in the insert is ecological and, most importantly, economical.
The primary air is supplied to the cartridge from the outside, thanks to the built-in 125 mm air inlet connection. The air intake stub is located in the floor of the cartridge. Its regulation takes place by built-in throttle, set by one controller below the door, which excludes errors in improper use. The whole mechanism works inside the fireplace, very quiet and trouble-free.
SAFETY AT THE HIGHEST LEVEL
The insert ensures the safety of use because it has so-called a parental lock, protecting against uncontrolled opening of the door.
The front of the insert is equipped with heat-resistant ceramics that withstand temperatures up to 660°C. The assembled glass has a quality and safety certificate.
The body and front of the insert are resistant to high temperatures due to the use of high-quality steel.
The door frame is made of a closed profile, which makes it stable and resistant to tensions occurring during operation at high temperatures. The excellent tightness of the insert is guaranteed by the solid welds made in the noble gas shield. Steel elements laser cut by means of modern devices, and then bent on CNC bending machines.
CONVENIENT TO USE
The door of the insert works in the lift up system - the window is lifted up. This system was built based on the counterweight - the steel cable pulley works in guides on two ball bearings, thanks to which the weight of the door is distributed evenly. They move on fireproof bearings along the sliding guides mounted in the frame, which guarantees their light, quiet and trouble-free operation. Movement of the door runs a few millimetres away from the body, which prevents damage to the seal. Lockable doors are pressed with great force into the frame, thanks to which the furnace is completely sealed.
Thanks to the raised and lowered door, you can load the right amount of wood at a time. An additional mechanism that allows the side windows to be opened, making them easier to clean and to keep the furnace clean.
The device is additionally equipped with a clean glass system - thanks to the so-called curtain air flow is distributed evenly, sweeps the glass and minimizes the deposition of soot on it. This allows you to maintain the effective and clean look of the glass for a long time.
The fireplace has a specially profiled bottom plate made of TERMOTEC, thanks to which the combustion chamber is deeper and contains more wood. Maintaining the fireplace is easier due to the mounted grate and the container in which ash accumulates.
The internal revision system makes it possible to carry out service activities from the inside of the furnace without destroying the building of the fireplace. The inset can be used in a variety of mounting conditions, thanks to adjustable feet and a movable adjustable 360° exhaust outlet.
Important note, European stoves require an additional Double Socket Adaptor in the relevant diameter for easy connection to standard single wall flue pipes. Option to purchase is available above.
The manufacturer grants a 5-year warranty from the moment of purchasing the stove. The buyer is obliged to read the stove’s instruction manual for its appropriate use which is confirmed by an entry in the warranty card at the time of warranty registration. In the case of a complaint, the user of the stove is obliged to follow the appropriate complaints’ procedure and be able to submit a copy of the completed warranty card and proof of purchase if requested. Submitting this documentation is necessary to resolve any claims. Volsom Ltd (Glowing Embers) will be more than happy to assist customers in this regard and provide guidance and support throughout any warranty claim. Consideration of the complaint will be made within 14 days from the date of its submission. Any modifications or physical design changes of the stove does invalidate the manufacturer's warranty.
The warranty covers all cast iron cast elements, movable elements of the control mechanisms of the flue shield and the comb of the ash box cover, grate and fireplace seals for 1 year from the moment of purchasing the stove. Some ceramic items are covered for a period of 2 years from the moment of purchasing the stove.
The warranty does not cover vermiculite, some heat-resistant ceramics (resistant to temperatures up to 800 ° C), all defects resulting from non-observance of the provisions of the operating instructions, in particular regarding the fuel and the kindling used, any defects caused during transport from the distributor to the customer, any defects caused during installation and start-up of the stove, damages resulting from thermal overloads of the chimney liner (related to the operation of the stove not in accordance with the provisions of the operating instructions).
In addition, any damage caused due to improper handling, storage, improper maintenance, inconsistent with the conditions specified in the operating instructions and due to other reasons not attributable to the manufacturer, will void the warranty if the damage contributed to the quality and performance changes relating to the stove’s operation.
ADVISORY:
It is important for our customers to note that the use of coal or other inappropriate fuels would lead to the invalidation of the warranty. Any action requested by the customer under the terms of the warranty would require a signature of declaration confirming that only wood has been used. The manufacturer (or person or organisation approved by the manufacturer to carry out any repairs) reserves the right to examine residue in the stove to confirm this. In such an instance where other fuels have been detected as being used within the stove, the customer is obliged to cover all costs related to the repair of the stove and/or replacement of parts; which includes the cost of labour. </
Kratki has been existing on the Polish market since 1998. By understanding the industry from scratch, focusing on customer needs and rapid response to market changes, this company boasts of being one of Europe's leading manufacturers of fireplaces. The products of Kratki are available in nearly 60 countries around the world and they have received a large variety of Awards including for both Company of the Year and Product of the Year.
