Arada Ecoburn 7 (Series 3) - 6.1kw Defra Multifuel Stove
Free Delivery (Excl. Highlands and Islands)
Estimated Delivery Up To 5 Working Days
No need to create an account to get delivery costs.
For a full delivery quote to your address, add the products you require to your basket and click the ‘View Contents’ button to see a full list of delivery options and costs for your entire order.
Technical Data
- Style:
- Traditional
- DEFRA Approved:
- Yes
- clearSkies Level:
- clearSkies 4
- Energy Efficiency Rating:
- A
- Fuel:
- Multi Fuel
- Construction:
- Cast Iron & Steel
- Output (kW):
- 6.10
- External Height (mm):
- 585
- External Width (mm):
- 465
- External Depth (mm):
- 365
- Efficiency (%):
- 73.0
- Warranty:
- 99 year(s)
- Max Log Length (mm):
- 350
- Outlet Diameter (mm):
- 127
- Outlet Diameter (inches):
- 5
- Distance from sides to Combustibles (mm):
- 450
- Distance from rear to Combustibles (mm):
- 650
- Primary Air:
- Yes
- Secondary Air:
- Yes
- Suitable for 12mm hearth:
- Yes
- Weight (kg):
- 68.0
- Distance rear to center of top outlet (mm):
- 102
- Distance floor to center of rear outlet (mm):
- 477
- Outlet Location:
- Top/Rear
For the Ecoburn range, Aarrow have delivered all of the traditional and innovative features synonymous with this English brand and designed a visually impacting stove with an even larger viewing glass window to create an astounding focal point for any living space.
Available in a wide range of outputs (4kW, 5kW, 7kW, 9kW and 11kW) you are guaranteed to find an Ecoburn stove to suit your home and being equipped with the Aarrow FlexiFuel System, your chosen model will maximise the combustion and efficiency of any solid fuel. The extensive view of the fire is kept crystal clear with the Airwash system and the secondary air regulator ensures complete control and efficiency of combustion.
The Aarrow FlexiFuel System is a new take on the traditional grate found in standard multi-fuel stoves. The unique bowl shape forces fuel into the centre of the grate, reducing levels of unburnt fuel and the design of the bars benefits wood, coal and solid fuel burning all equally. Reduced gaps in the FlexiGrate prevent the complete loss of hot ash into the pan whilst also allowing sufficient air for efficient combustion. Aarrow have even specially manufactured the bars to be replaced individually.

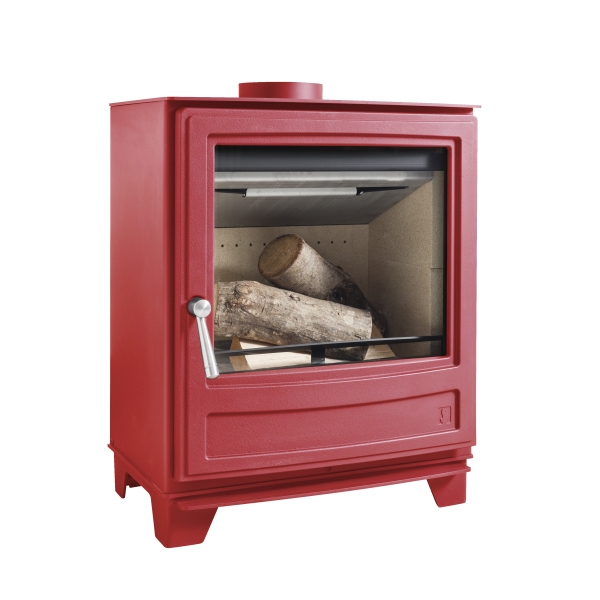

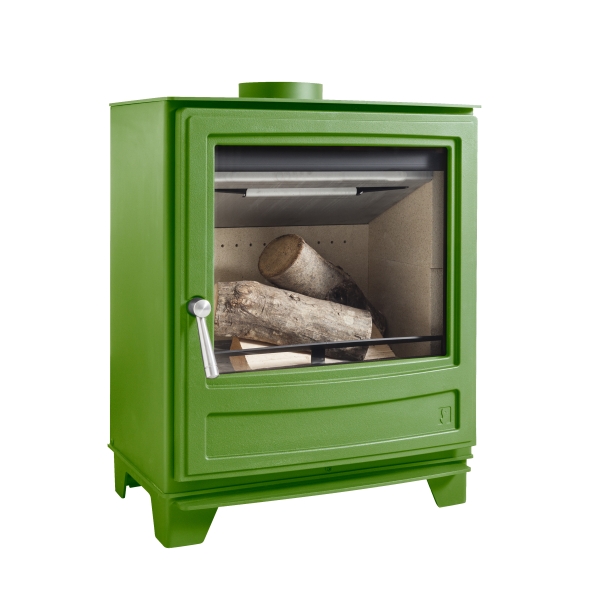

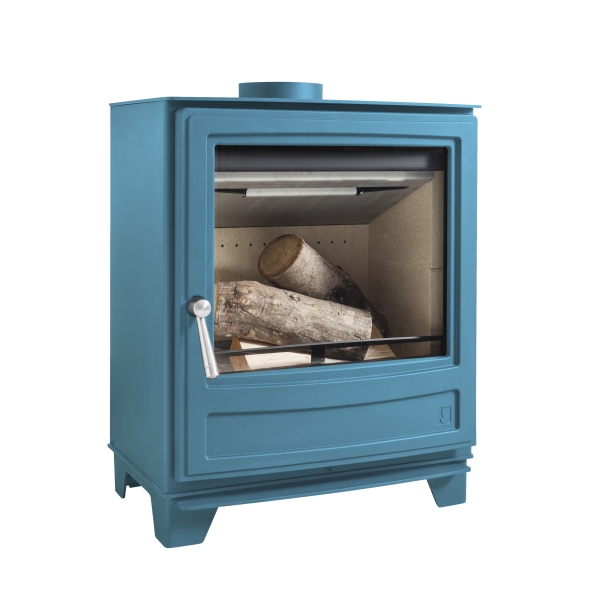

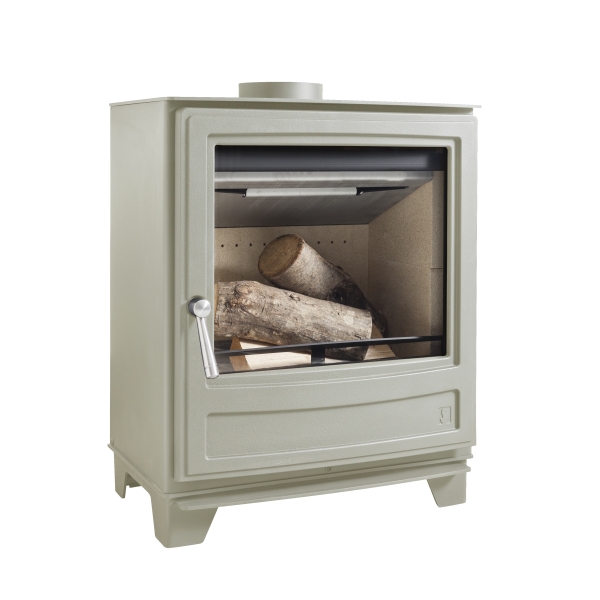

Adding a bit of colour
You can custom design your Arada Stove by adding colour to different parts of your stove. If you would like to choose this option, just call our Sales Team to advise them which colour you would like to have used for any one or more of the following parts of your stove.
- Body
- Door
- Door glass edging
- Trim
- Canopy
- Log store
- Pedestal
- Stand
For each part which is coloured to your taste add £72.00 (includes VAT).
Colours available:
- Atlantic
- Chestnut
- Midnight
- Mist
- Sandcastle
- Slate
- Spice
The BOLD Range:
- Flamingo
- Miami
- Peapod
- Raincoat
If you would like your stove to be produced using colours there is a 3/4 week lead time.
Pre-Heated Air wash system This stove comes with the renowned hot air airwash system. The Aarrow airwash system directs a stream of hot air onto the viewing glass on the combustion chamber to keep the flames away from the door to avoid blackening of the glass for crystal clear glass all the time. |
Solid Fuel / Heat Shield / Direct Air Kits combined instructions
Stand and Log Store fitting guide
When you buy an Arada stove, you are not only buying a first class appliance, you are receiving a commitment from us to look after you and your appliance.
Guarantee
If any part of the main body of the stove fails due to a manufacturing or material defect during the guarantee period that applies in respect of the relevant stove (as set out below), Arada will, at its sole discretion, repair or replace your Arada stove, for no charge. For the purposes of this guarantee, a material or manufacturing defect includes the splitting or cracking of the main body (defined as the steel outer casing and items fixed immovably to the casing).
The following guarantee periods shall apply in respect of the following Arada stoves:
Non-boiler Arada stoves come with a lifetime guarantee
Non-boiler Hamlet stoves come with a ten year guarantee
Arada boiler stoves come with a seven year guarantee
Hamlet boiler stoves have a three year guarantee
The external paint finish and thermostat (if factory fitted) carry a one-year guarantee only.
Terms and Conditions
The following terms and conditions must be satisfied in order for your stove to be covered by the guarantee set out above:
Your stove must have been purchased from an officially approved Arada dealer – it has, Volsom Ltd, Braintree, Essex.
You must be the original purchaser of the stove in order to make a claim. This guarantee is not valid in relation to any claims made by someone who did not originally purchase the stove from Arada or an approved Arada dealer.
Any claim under this guarantee must be made through the approved Arada dealer where the stove was purchased (Volsom Ltd) and accompanied by proof of purchase (e.g. a valid receipt). Stoves not purchased from an approved Arada dealer will not be covered by this guarantee.
Your stove must be installed in the UK or Republic of Ireland for this guarantee to be valid. Stoves installed outside of these areas will not be covered by this guarantee.
Your stove must have been installed by a suitably qualified person and in accordance with the manufacturer’s installation instructions. Stoves not installed by a suitably qualified person or not installed in accordance with the manufacturer’s installation instructions will not be covered by this guarantee.
Any claims under this guarantee shall not be valid where the installation of the stove does not conform to all required building regulations and other legislation in force at the time of purchase and where flue draw readings have not been made to confirm a suitability of the flue. The manufacturer’s decision as to whether this condition has been satisfied shall be final.
The guarantee does not cover damage caused to the stove through careless handling or misuse or neglect of the appliance (misuse and neglect being not following the manufacturer’s instructions and user guides in relation to the stoves, including the use of non-recommended fuels).
All boiler stoves must have rust inhibiter used at the correct concentration and this must be replaced on an annual basis for the warranty to be valid.
The following consumable service items are not covered by this guarantee:
Firebox linings
Grate bars
Fuel Retainer
Throat plate / FED plate / Baffle plate
Gaskets
Door glass
Seals
Associate parts
The guarantee does not cover damage caused by storing or using the stove in a damp environment, defects or faults caused by local conditions such as draught problems and chimney defects or corrosion caused by condensation, damp or water ingress into the flue, chimney or the surrounding of the stove. The guarantee is only valid if the stove is serviced and checked annually by a suitably qualified heating engineer, with documentation to be retained and produced in the event of a claim being made.
The guarantee is only valid where any spare parts used are supplied by Arada or an approved Arada dealer. The use of spares other than those supplied by Arada Limited shall invalidate the guarantee. Parts can be sourced through an approved dealer or directly from Arada online atwww.aradastovesandspares.com. The guarantee is not valid where any repairs or modifications have been made to the stove which have been carried out by anyone other than Arada or its authorised representatives or approved dealers.
All guarantee periods commence on the date of purchase and are non-transferable and solely for the benefit of the original purchaser of the stove.
General
Our guarantee is offered as an addition to your statutory rights and will not affect your statutory rights. You can obtain information about your legal rights from trading standards offices or a citizens' advice bureau. If you believe your stove is not working correctly or it has broken down, in the first instance please contact your local retailer or installer for assistance. This guarantee is applicable in the UK only and operates exclusively in accordance with the laws of England and Wales.
As part of the Villager brand, Arada have been producing wood and multi fuel stoves for over 30 years with the roots of Arada being over 50 years old. This family run business started in Lyme Regis in Dorset called 'Lyme Regis Engineering', renamed to 'Villager Stoves' in 1979, moving to Axminster in Devon. Today the individual brands of Aarrow, Stratford and Villager are all combined under the Contemporary Living, Timeless Classics and Hardworking Heating collections within the Arada brand.
These stoves are steeped in a history epitomising the successful evolution and development of reliable and well made British stoves.
Stove Glass Accidental Damage Cover
Replacing damaged stove glass is something most stove owners will be familiar with, be it by closing the door on a protruding log, over-tightening the glass retaining clips or the natural heat expansion of the door, chances are you have had to purchase replacement glass for your wood burning stove at least once.
By adding Glowing Embers' Accidental Damage Cover, you have peace of mind that the potentially costly process of cutting and shipping a replacement glass is covered for when those accidental breakages occur.
Terms & Conditions
Glass Protection covers you for cracked or smashed stove glass for the period of time that you select. We cover you for accidental breakage for any reason for the length of time you selected but doesn't cover for any consequential loss or installation costs. Installation is usually an easy process, and our team can talk you through it. To claim against this protection, simply send us an email prior to the expiration date (either 1 or two years from the purchase date, depending upon which option you pick) with a photo clearly showing your stove with the broken glass. We may require measurements or a template from you to cut the replacement glass accurately and your provision of this when required is conditional on our fulfilment of this protection. The protection covers you for one replacement only within the set period, additional breakages (outside of breakage on delivery which will be covered free of charge) will fall outside of this protection. This only covers flat glass cut by Glowing Embers and does not cover curved or printed glass.
Stove Fitting Kit
5" (125mm) Fitting Kit
Essential components for any stove installation into an existing chimney, this Fitting Kit for stoves with a 5" (125mm) diameter outlet collar includes an 800mm x 400mm Register Plate (Chimney Closure Plate), 5" Reducing Plate and a 1000mm length of leading brand Vitreous Enamelled Stove Pipe in 5" internal diameter.
Sited above the stove, the metal Register Plate sits on - or can be screwed up to - the 4 supplied brackets and features a pre-cut central hole (reduced to 5" diameter when used with the provided Reducing Plate) for the Stove Pipe to pass through, into the chimney cavity. This plate is easily cut to your required size and not only prevents debris or insulating granules from falling down the chimney, but also deflects heat rising from the stove into the room. The 1000mm length of leading brand Vitreous Enamelled Stove Pipe has a reduced male connection which must be fitted inside the outlet collar of the stove and sealed with our Vitcas or Kos Fire Cements, Envirograf Silicone Sealant or Heat Resistant Stove Rope. The traditional finish of our Stove Pipes not only perfectly match the body of the stove but can also withstand the heat from the burner without blemishing the finish of the flue.
6" (150mm) Fitting Kit
Essential components for any stove installation into an existing chimney, this Fitting Kit for stoves with a 6" (150mm) diameter outlet collar includes an 800mm x 400mm Register Plate (Chimney Closure Plate) and a 1000mm length of leading brand Vitreous Enamelled Stove Pipe in 6" internal diameter.
Sited above the stove, the metal Register Plate sits on - or can be screwed up to - the 4 supplied brackets and features a pre-cut 6" central hole for the Stove Pipe to pass through, into the chimney cavity. This plate is easily cut to your required size and not only prevents debris or insulating granules from falling down the chimney, but also deflects heat rising from the stove into the room. The 1000mm length of leading brand Vitreous Enamelled Stove Pipe has a reduced male connection which must be fitted inside the outlet collar of the stove and sealed with our Vitcas or Kos Fire Cements, Envirograf Silicone Sealant or Heat Resistant Stove Rope. The traditional finish of our Stove Pipes not only perfectly match the body of the stove but can also withstand the heat from the burner without blemishing the finish of the flue.
7" (175mm) Fitting Kit
Essential components for any stove installation into an existing chimney, this Fitting Kit for stoves with a 7" (175mm) diameter outlet collar includes a 1200mm x 600mm Register Plate (Chimney Closure Plate) and a 1000mm length of leading brand Vitreous Enamelled Stove Pipe in 7" internal diameter.
Sited above the stove, the metal Plain Register Plate sits on - or can be screwed up to - the 4 supplied brackets and simply requires a 7" hole cutting in it for the Stove Pipe to pass through, into the chimney cavity. This plate is easily cut to your required size and not only prevents debris or insulating granules from falling down the chimney, but also deflects heat rising from the stove into the room. The 1000mm length of leading brand Vitreous Enamelled Stove Pipe has a reduced male connection which must be fitted inside the outlet collar of the stove and sealed with our Vitcas or Kos Fire Cements, Envirograf Silicone Sealant or Heat Resistant Stove Rope. The traditional finish of our Stove Pipes not only perfectly match the body of the stove but can also withstand the heat from the burner without blemishing the finish of the flue.
8" (200mm) Fitting Kit
Essential components for any stove installation into an existing chimney, this Fitting Kit for stoves with an 8" (200mm) diameter outlet collar includes a 1200mm x 600mm Register Plate (Chimney Closure Plate) and a 1000mm length of leading brand Vitreous Enamelled Stove Pipe in 8" internal diameter.
Sited above the stove, the metal Plain Register Plate sits on - or can be screwed up to - the 4 supplied brackets and simply requires an 8" hole cutting in it for the Stove Pipe to pass through, into the chimney cavity. This plate is easily cut to your required size and not only prevents debris or insulating granules from falling down the chimney, but also deflects heat rising from the stove into the room. The 1000mm length of leading brand Vitreous Enamelled Stove Pipe has a reduced male connection which must be fitted inside the outlet collar of the stove and sealed with our Vitcas or Kos Fire Cements, Envirograf Silicone Sealant or Heat Resistant Stove Rope. The traditional finish of our Stove Pipes not only perfectly match the body of the stove but can also withstand the heat from the burner without blemishing the finish of the flue.
Flexible Chimney Liner Kit
5" (125mm) Flexible Chimney Liner Kit
Simply select your required length of Flexible Chimney Liner to complete your stove installation into an existing chimney with our essential Chimney Liner Install Kit.
This kit includes the Adapter to connect to 5" diameter Stove Pipe, your choice of 6-12m of 5" Helix twin-skinned, 316 grade, stainless Flexible Chimney Liner (suitable for use with all solid fuels, gas and oil and comes with a lifetime of the appliance warranty), a stainless Hanging Cowl with Bird Guard Mesh for chimney pots and a building regulation required Chimney Notice Plate.
6" (150mm) Flexible Chimney Liner Kit
Simply select your required length of Flexible Chimney Liner to complete your stove installation into an existing chimney with our essential Chimney Liner Install Kit.
This kit includes the Adapter to connect to 6" diameter Stove Pipe, your choice of 6-12m of 6" Helix twin-skinned, 316 grade, stainless Flexible Chimney Liner (suitable for use with all solid fuels, gas and oil and comes with a lifetime of the appliance warranty), a stainless Hanging Cowl with Bird Guard Mesh for chimney pots and a building regulation required Chimney Notice Plate.
8" (200mm) Flexible Chimney Liner Kit
Simply select your required length of Flexible Chimney Liner to complete your stove installation into an existing chimney with our essential Chimney Liner Install Kit.
This kit includes the Adapter to connect to 8" diameter Stove Pipe, your choice of 6-12m of 8" Helix twin-skinned, 316 grade, stainless Flexible Chimney Liner (suitable for use with all solid fuels, gas and oil and comes with a lifetime of the appliance warranty), a stainless Hanging Cowl with Bird Guard Mesh for chimney pots and a building regulation required Chimney Notice Plate.
Stove Essential Extras
Carbon Monoxide (CO) Alarm
Legal requirement for all stove installations, add an easy to fit CO Alarm to your order so you're ready for a safe stove installation. Free standing or wall mounted (see our Carbon Monoxide (CO) guide for correct placement), this alarm comes supplied with batteries for a minimum seven years continuous operation and meets the requirements of Building Regulations Approved Document J.
Stove Pipe Thermometer
Add our simple to read Stove Pipe Thermometer to your order and start operating your stove at its optimum performance from day one. Intended for fixing to the first length of single wall stove pipe, this thermometer accurately displays the burning temperature in both °C and °F as well as illustrating temperature zones for best operation, too hot and too low.
500g Fire Cement
Ideal for a variety of applications, Fire Cement is an essential extra for all stoves as it is required for sealing stove pipe, outlet collar and Flex Adapter connections as well as around Register Plates to prevent loss of gases and heat from the system. This ready mixed black Fire Cement creates smoke tight seals once fully cured.
Double Socket Adapter
An essential for any European model of stove, you simply won't be able to connect your flue pipe without our Double Socket Adapter. Designed to secure over the stove's outlet collar (which will be a male spigot), the Adapter converts it to a female socket to allow your Stove Pipe or Twin Wall Adapter to connect securely and safely.
(Acorn) Black Stove Companion Set
Don't forget to add a Companion Set to your order as you'll wish you have one when first lighting the stove! This 530mm tall, traditionally designed set is finished in black and features all the essential fireside tools you need suspended above a sturdy base - Tongs for positioning logs inside the firebox, a shovel and brush for cleanly removing ash and a poker to stoke the fire.
