5" (125mm) Adaptor From Single Wall To Sflue Twin Wall

5" (125mm) Adaptor From Single Wall To Sflue Twin Wall

£18.03 inc VAT

Qty:

Get this item Monday if you order within and choose next day shipping at checkout

Order By 2pm For Next Working Day Delivery* *select delivery upgrade at checkout

No need to create an account to get delivery costs.
For a full delivery quote to your address, add the products you require to your basket and click the ‘View Contents’ button to see a full list of delivery options and costs for your entire order.

Technical Data

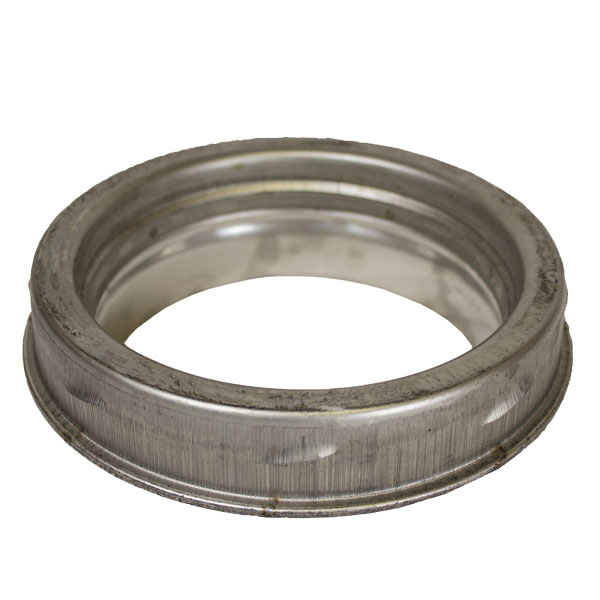

    The SFL Sflue single to twin wall adaptor is the first twin wall flue part you will need for your twin wall flue installation. It connects directly to your stove spigot and then upwards to your twin wall pipes or to the length of enamelled pipe coming out of the top of your stove. It is usually recommended to come straight out of the stove with a length of enamel pipe as this pipe is both cheaper and harder wearing.

    Please note - as with all twin wall parts the diameter quoted is the internal diameter - the external diameter is 2 inches larger due to the surrounding insulation.

    Dimensions A:128mm B:400mm C:350mm

    • Distance to Combustibles: 50mm
    • Warranty: 10 years
    • Finish: Stainless Steel
    • Internal TW Diameter: 127mm
    • External TW Diameter: 178mm
    • Connections: Eight Barb Twist Quick Lock (Locking Band Not Included)
    • Grade of Steel: 316 Internal, 304 External
    • Thickness of Steel: 0.5mm
    • Insulation:: 25mm auger injected mineral wood material
    • Temperature Resistance: 450°C
    • Approvals: HETAS Approved, CE, BS EN ISO 9001
    • Designation No: BS EN:1856-1 T450 N1 D Vm L50040 G50
