Technical Data

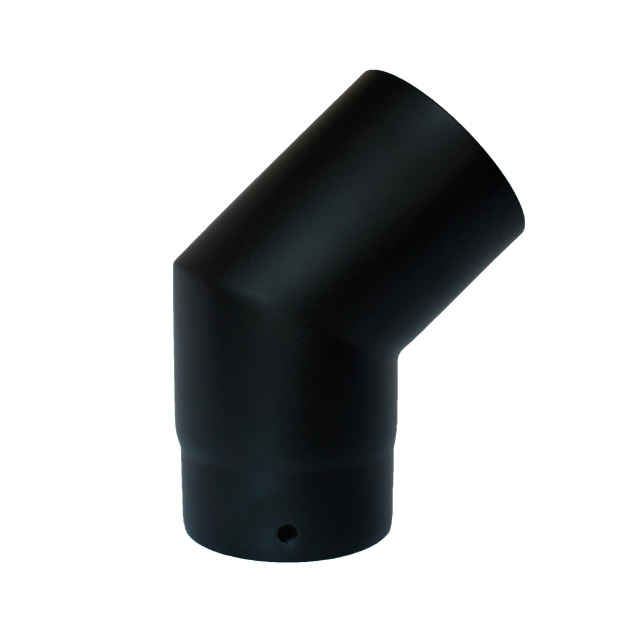

45° Elbow 4" (100mm) - Gloss Black
2 segment smooth 45° Elbow.
This high-quality pipe is constructed from single skin connecting flue system manufactured in zero carbon steel with powder vitreous enamel coating in a gloss black finish.
For safe installation, maintain a minimum 375mm distance from any combustible materials such as wood or plasterboard. Install with the smaller diameter end facing downward to keep condensate contained within the flue. The friction-fit joint design eliminates the need for sealants, but for added security, joints can be sealed with fire cement or high-temperature silicone. If cutting is required, cover any exposed steel with high-temperature paint to prevent rust. Always wear appropriate personal protective equipment (PPE) during installation.
Designed for gas, oil, and solid fuel appliances, operating at temperatures up to 600°C. It serves as an essential connecting pipe between your appliance and a Flue Liner, Chimney Stack, or Twin Wall Flue System. Note that it should not be used to pass through combustible ceilings or walls.
For further information on using Vitreous Enamelled flue in your system, please see our Chimney Installations page or Non-Chimney Installs section
- Material: Zero Carbon Steel
- Fuel Type: Gas, Oil & Approved Solid Fuels
- Max Operation Temperature: 600°C
- Steel Thickness: 1.2mm
- Coating: Powder Enamel
- Coating Thickness: 0.2mm
- Colour: Gloss Black
- Approval: EN1856-2 T600 N1 Vm L80120 G375
- Distance to Combustible: 375mm
- Warranty: 2 Years
