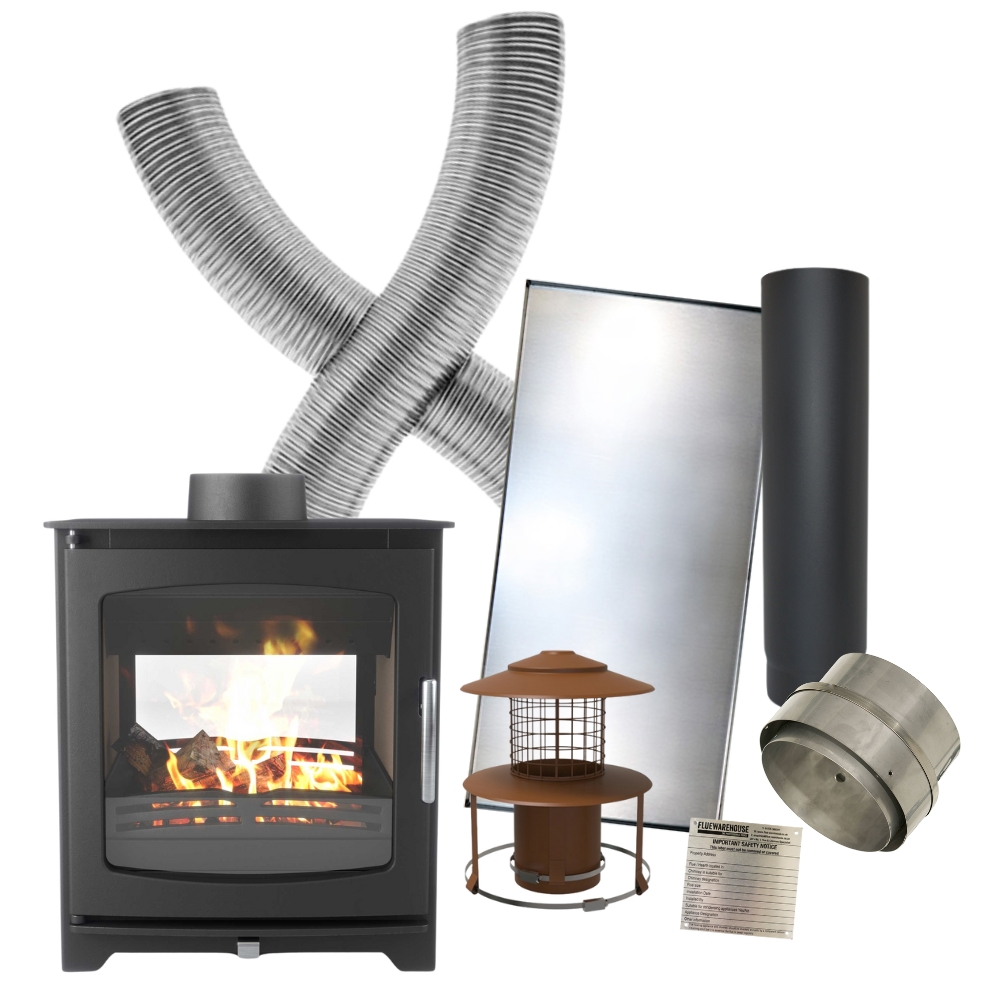

Henley Hazelwood DS 6kw Double Sided Wood Burning Stove & Flexible Flue Liner Kit

Henley Hazelwood DS 6kw Double Sided Wood Burning Stove & Flexible Flue Liner Kit

This Flexible Flue Liner and Installation Kit offers a durable, easy-to-install solution into an existing chimney with a pot.

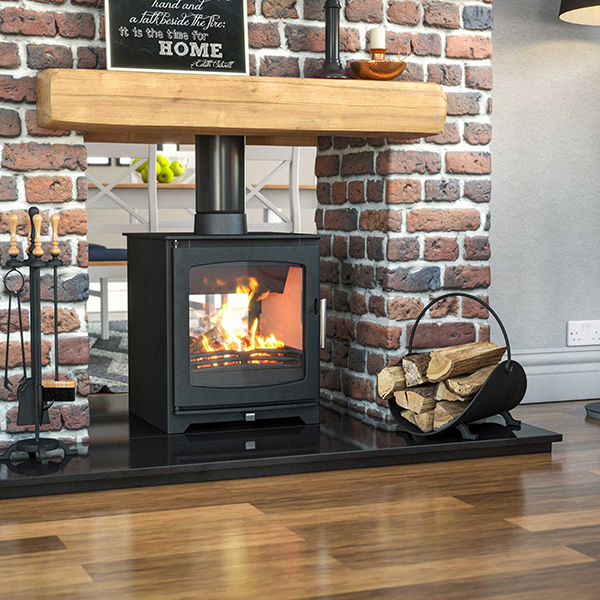

The Henley Hazelwood DS 6kW Double-Sided Wood Burning Stove offers both style and functionality, making it a perfect focal point for any room. This stunning stove is designed to deliver warmth and comfort to two spaces at once, with a sleek and modern aesthetic that complements any décor. With a heat output of 6kW, it's ideal for medium-sized rooms, providing efficient heat with a high energy efficiency rating. Its double-sided design allows for a captivating view of the flames from both sides, creating a cozy ambiance for your living space.

Crafted with durable materials and built to the highest standards, the Hazelwood DS is eco-friendly and complies with the latest emission standards, ensuring a clean burn with minimal environmental impact. Whether you’re looking to enhance your living room, dining room, or any other shared area, this stove brings elegance, warmth, and a practical heating solution to your home.

Key Features:

• Heat Output: 6kw, Perfect for Medium-Sized Rooms
• Double-Sided Design: Enjoy The Warmth and View of The Flames from Two Rooms Simultaneously
• High Efficiency: Designed For Optimal Energy Efficiency, Reducing Fuel Consumption
• Eco-Friendly: Complies With the Latest Emission Standards for A Clean and Eco-Conscious Burn
• Modern Aesthetic: Sleek And Stylish, Complements A Variety of Interior Designs
• Durable Construction: Built With High-Quality Materials for Long-Lasting Performance
• Easy To Use: Simple Controls for Managing Heat Output and Airflow
• Clean Burn - Featuring A Territory Air System, This Allows the Excess Gases to Combust Given a Cleaner Burn.
• Air Wash - An Advanced Air Wash System, Which Helps to Keep the Glass Clean. Using Specially Placed Vents to Draw External Air, Which Sweeps Over the Front Surface of The Glass, Effectively Preventing Buildup and Ensuring Its Cleanliness.
• External Air - Enables Air to Be Taken from Outside the Building and Used for Combustion Within the Stove.

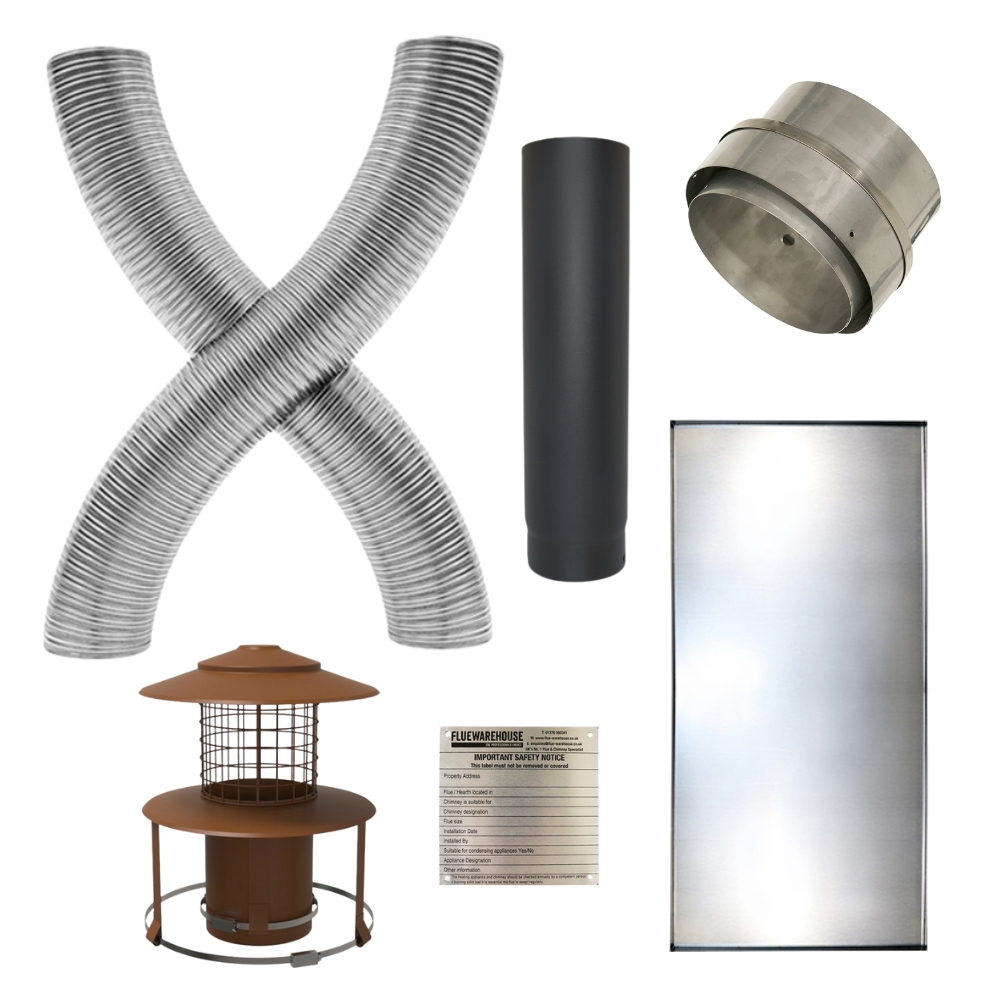

Installation Kit Includes:

• 10 Meters of 5" Flexible Flue Liner
• Single To Flex Adapter - 5"
• Terracotta Hanging Cowl with Rain Cap Mesh - 5"
• 500mm of Vitreous Pipe - 5"
• Register Plate 1200 x 600mm Plain
• Notice plate

Henley Hazelwood DS 6kw Double Sided Wood Burning Stove

• Double Sided: Yes
• Style: Modern
• Eco Ready: Yes
• Fuel: Wood Only
• Construction: Cast Iron
• Output (kW): 6.00
• External Height: 530
• External Width: 465
• External Depth: 582
• Efficiency (%): 75.8
• Warranty: 5 year(s)
• Outlet Diameter (mm): 125
• Outlet Diameter (inches): 5
• External/Direct Air: Yes
• Primary Air: Yes
• Secondary Air: Yes
• Weight (kg): 110.0
• Distance rear to center of top outlet (mm): 232
• Outlet Location: Top

10 Meters of 316L 5" Flexible Flue Liner

• Diameter: 5" 125mm
• Fuels: Wood, Gas & Oil
• Inner Skin: 316L
• Outer Skin: 316L
• Seam: Omega
• Material Thickness: 0.105mm
• Designation: BS EN 1856-2 T600 N1 W Vm L50011 G/BS EN 1856-2 T200 P2 W Vm L50011 O
• Approvals: HETAS

5" Single to Flex Adapter

• Effective Height: 50mm

• Thickness of Steel: 0.8mm

• Internal Diameter: 125mm (5")
• External Diameter: 145mm

• Distance to Combustibles: 300mm (12")

• Distance to Non-Combustibles: 150mm (6")

• Colour Finish: Stainless Steel
• Insulated: No
• Flex Liner Connection: Cement & Self-Tapping Screws (not included)

5" 500mm Pipe Matt Black

• Diameter: 125mm
• Material: Zero Carbon Steel
• Fuel Type: Gas, Oil & Approved Solid Fuels
• Max Operation Temperature: 600°C
• Steel Thickness: 1.2mm
• Coating: Powder Enamel
• Coating Thickness: 0.2mm
• Colour: Matt Black
• Approval: EN1856-2 T600 N1 Vm L80120 G375
• Distance to Combustible: 375mm

Register Plate 1200 x 600mm Plain

• Material: Galvanised Steel
• Thickness: 1.5mm
• Length: 1200mm
• Width 600mm
• Connections: 4 x Angle Brackets

• Centre Hole: No
• Inspection Hatch: No

5" Terracotta Hanging Cowl with Rain Cap Mesh

• Finish: Terracotta
• Diameter: 5" 125mm
• Material: 316L
• Fuels: Wood, Oil, Gas, Smokeless Coal
• Approvals: CE/HETAS

Chimney Notice Plate

• Building Regulation: Yes
• Construction: Steel
• Plate Size: 100mm x 100mm
• Fixing: 4 x Screws (not supplied)
