25 Year Warranty

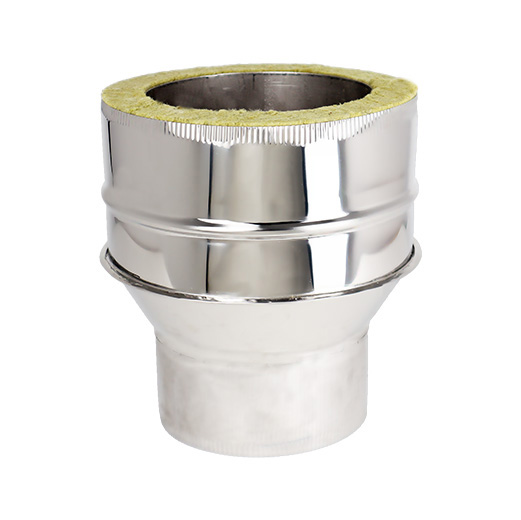

Adapter From Single Wall To Twin Wall Pipe – 7″ (175mm)

£31.36 Inc VAT

Get this item on Tuesday if you order within and choose next day shipping at checkout

Delivery

Order by 12pm - next working day delivery (*upgrade at checkout)
Available for Click & Collect - allow one working day

The Shieldmaster single to twin wall adaptor is the first twin wall flue part you will need for your twin wall flue installation. It connects directly to your stove spigot and then upwards to your twin wall pipes or to the length of enamelled pipe coming out of the top of your stove. For best results, it is generally recommended to begin with a section of enamel pipe straight from the stove, as this option is both more cost-effective and more durable.

Installation Notes

This product does not come with a locking band, as the next part you attach it to comes with a locking band. Attach the bottom of this product to your stove pipe or spigot with fire cement and the top connects directly to your twin wall pipes.

Important Information

All twin wall flue parts are measured by their internal diameter. Due to the insulated construction, the external diameter will be approximately 2 inches larger than the stated size.

Technical Guidance

For help with installation requirements and compliance, please see our Technical Information section, which includes easy-to-understand guides covering Building Regulations for stove and flue installations.

For more information about twin wall flue installations, see our guide.

Technical Details

SKU	TTWI-BSHI-LSTN-D175-CSW/TW
Brand	Shieldmaster
Flue System	Twin Wall Flue System
Flue Diameter	7" (175mm)
Flue Colour	Silver
Flue Part	Adapter

Distance to Combustibles60mm
Warranty25 Years
FinishStainless

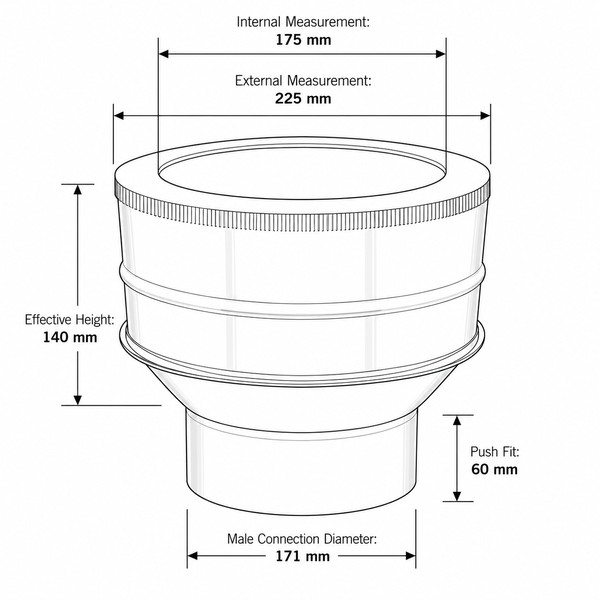

Internal Diameter175mm
External Diameter225mm
OD of Male End171mm
Effective Height140mm
Connections60mm Push Fit (Locking Band not required)
Grade of Steel316 Internal, 304 External
Thickness of Steel0.5mm
Insulation25mm Compressed Rockwool
Temperature Resistance450°C
ApprovalsHETAS ANC112, BS 476-20, CE, EN 1856-1:2009
DesignationT450-N1-D-Vm-L50050-G60

Manufacturer: Shieldmaster

Shieldmaster twin wall flue pipe is precision made to achieve a smaller distance to combustible materials than many other pipes on the market. At just 60mm minimum clearance to combustibles and a 25 year warranty this brand of twin wall pipe really does the job well and is built to last. With its unique push fit system it easily locks with an included band without the need for any sealant or adhesives at the joins.

Warranty Details

Shieldmaster flue products come with a 25-year warranty covering manufacturing defects, provided the system is installed and used in accordance with the supplied installation instructions. To maintain warranty validity, the flue must be professionally swept at least once a year by an approved chimney sweep, with a signed service record kept. When burning solid fuels, only those approved by HETAS or the Solid Fuel Association are permitted. Use of unapproved fuels or any indication of a chimney fire will void the warranty. For coloured flue pipes with a powder-coated finish, the surface coating is covered by a separate 2-year warranty.

Shieldmaster Twin Wall Flue Systems Brochure
