Fixed 50mm Wall Bracket Support – Ø175mm for 5″/125mm Twin Wall Flue Pipe – Black

£27.99 Inc VAT

Add to Cart
Fixed 50mm Wall Bracket Support – Ø175mm for 5″/125mm Twin Wall Flue Pipe - Black
Fixed 50mm Wall Bracket Support – Ø175mm for 5″/125mm Twin Wall Flue Pipe - Black
£27.99 Inc VAT

Display Option

Total: £27.99
Get it Tomorrow if you order within and choose next day shipping at checkout

Delivery

  • Order by 12pm - dispatched same day (*select Express at checkout)
  • Available for Click & Collect - allow one working day

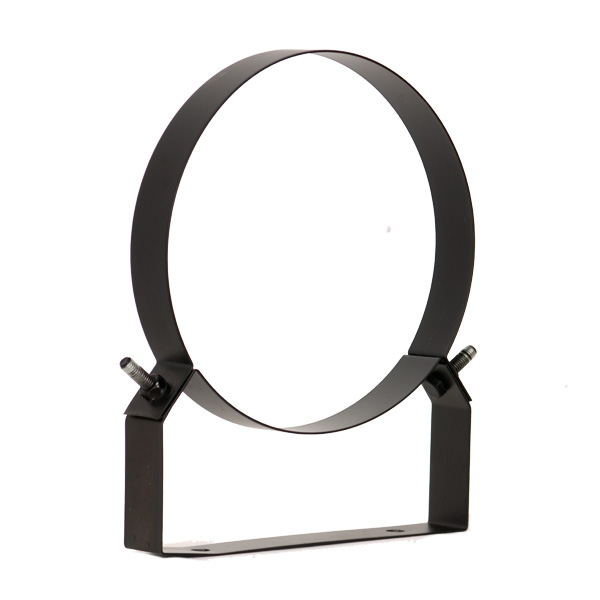

Fixed 50mm Wall Support Bracket to fit Shieldmaster pipes. This bracket is not adjustable and will hold the pipe 50mm from the wall. It is recommended to have at least one support every 2 meters.

Shieldmaster does not need any additional silicone or sealants to seal the joints. It has a unique push-fit locking system to make connecting and disconnecting really simple.

Important Information

All twin wall flue parts are measured by their internal diameter. Due to the insulated construction, the external diameter will be approximately 2 inches larger than the stated size.

Technical Guidance

For help with installation requirements and compliance, please see our Technical Information section, which includes easy-to-understand guides covering Building Regulations for stove and flue installations.

For more information about twin wall flue installations, see our guide.

Please note: The product shown in the video has a stainless steel finish for demonstration purposes only. The product supplied is finished in black. The video is intended to provide a complete view of the product’s shape, design and features.

Technical Details

SKUTTWI-BSHI-LBLK-D125-CWMT
BrandShieldmaster
Flue SystemTwin Wall Flue System
Flue Diameter5" (125mm)
Flue ColourBlack
Flue PartBracket
  • Distance to Combustibles60mm
  • Warranty25 Years
  • FinishBlack
  • Compatible With125mm Shieldmaster
  • Bracket Diameter175mm
  • ConnectionsN/A
  • Grade of Steel304 External
  • Thickness of Steel0.5mm
  • InsulationN/A
  • Temperature Resistance450°C
  • ApprovalsHETAS ANC112, BS 476-20, CE, EN 1856-1:2009
  • DesignationT450-N1-D-Vm-L50050-G60

Manufacturer: Shieldmaster

Shieldmaster twin wall flue pipe is precision made to achieve a smaller distance to combustible materials than many other pipes on the market. At just 60mm minimum clearance to combustibles and a 25 year warranty this brand of twin wall pipe really does the job well and is built to last. With its unique push fit system it easily locks with an included band without the need for any sealant or adhesives at the joins.

Warranty Details

Shieldmaster flue products come with a 25-year warranty covering manufacturing defects, provided the system is installed and used in accordance with the supplied installation instructions. To maintain warranty validity, the flue must be professionally swept at least once a year by an approved chimney sweep, with a signed service record kept. When burning solid fuels, only those approved by HETAS or the Solid Fuel Association are permitted. Use of unapproved fuels or any indication of a chimney fire will void the warranty. For coloured flue pipes with a powder-coated finish, the surface coating is covered by a separate 2-year warranty.

Shieldmaster Twin Wall Flue Systems Brochure
