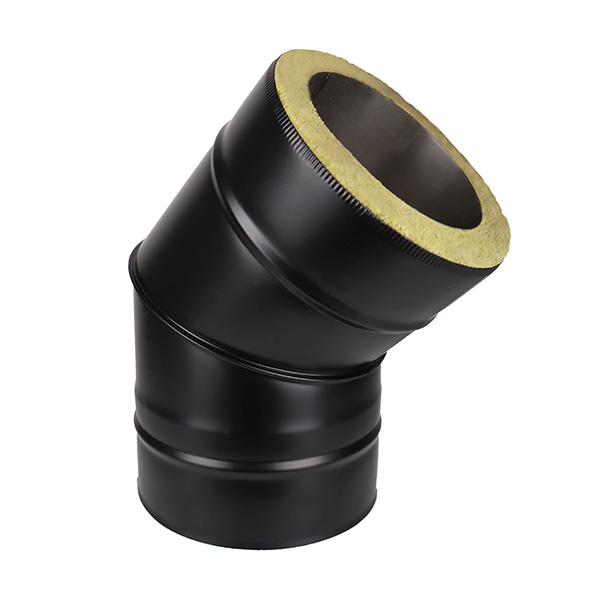

Elbow 45° - Twin Wall Insulated Flue Pipe - 5" (125mm) - Black

Elbow 45° - Twin Wall Insulated Flue Pipe - 5" (125mm) - Black
Elbow 45° - Twin Wall Insulated Flue Pipe - 5" (125mm) - Black

£72.20 inc VAT


Get this item Wednesday if you order within and choose next day shipping at checkout

Order By 12.00pm For Next Working Day Delivery* *select delivery upgrade at checkout

Available for collection within one business day

No need to create an account to get delivery costs.
For a full delivery quote to your address, add the products you require to your basket and click the ‘View Contents’ button to see a full list of delivery options and costs for your entire order.

Technical Data

    The Shieldmaster 45 elbow can be used as a pair to offset your flue run or to divert you through a wall, round a gutter or to avoid beams.

    Shieldmaster does not need any additional silicone or sealants to seal the joints. It has a unique push-fit locking system to make connecting and disconnecting really simple.

    Please note - as with all twin wall parts the diameter quoted is the internal diameter - the external diameter is 2 inches larger due to the surrounding insulation.

    Please see our Technical Information section for easy to understand guides for all the Building Regulations involved with stoves and flues.

    For more information about twin wall flue installations, see our guide.


    • Distance to Combustibles: 60mm
    • Brand: Shieldmaster
    • Warranty: 25 Years
    • Finish: Black

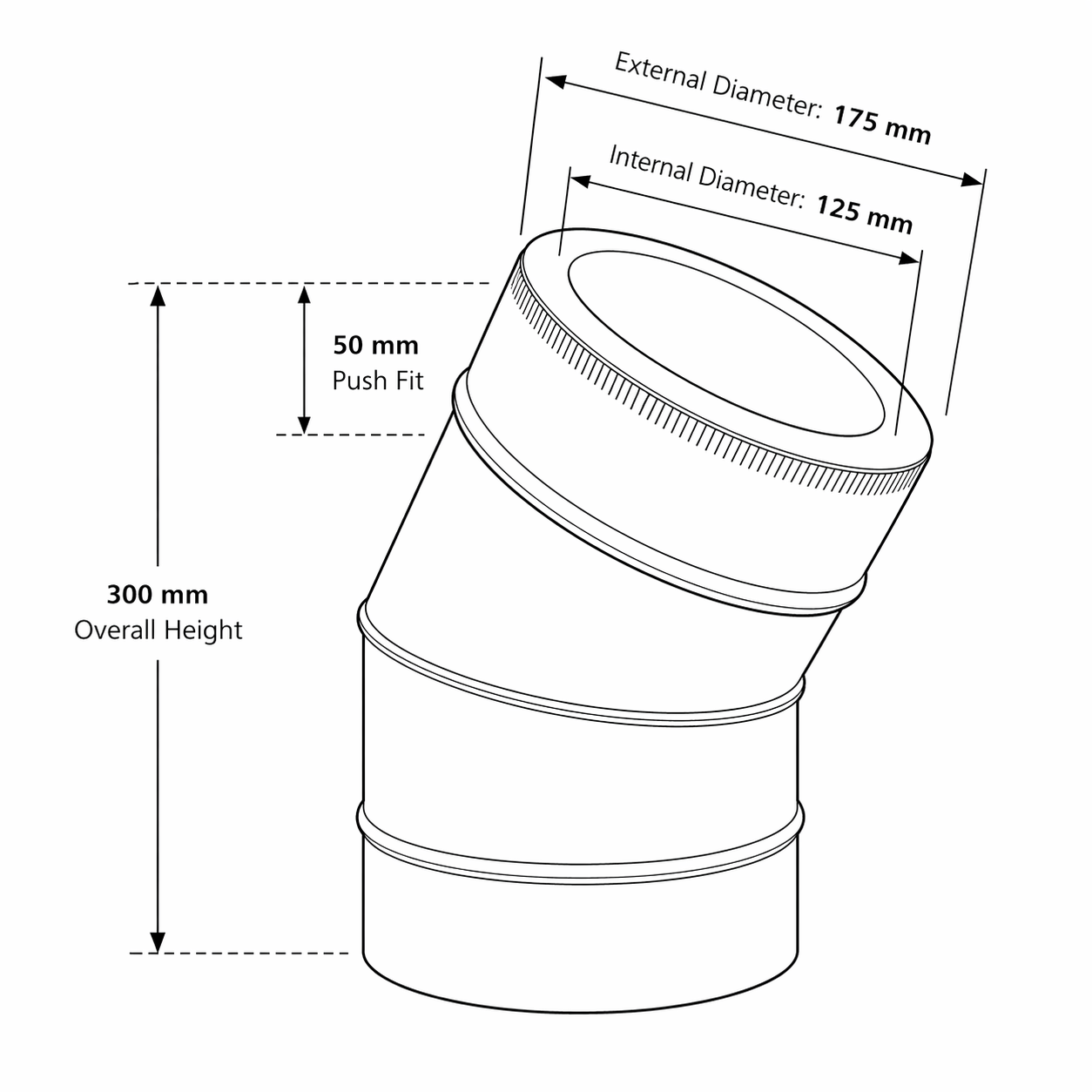

    • Internal Diameter: 125mm
    • External Diameter: 175mm
    • Height: 300mm
    • Height 2 x elbows: 470mm
    • Offset 2 x elbows: 200mm
    • Connections: 50mm Push Fit (Locking Band Included)
    • Grade of Steel: 316 Internal, 304 External
    • Thickness of Steel: 0.5mm
    • Insulation: 25mm Compressed Rockwool
    • Temperature Resistance: 450°C
    • Approvals: HETAS ANC112, BS 476-20, CE, EN 1856-1:2009
    • Designation: T450-N1-D-Vm-L50050-G60
