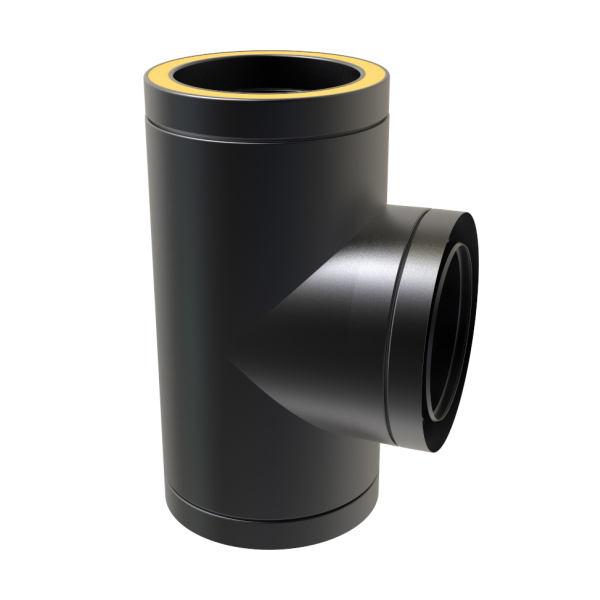

KW Pro Tee 90° - 4" (100mm) - Black

KW Pro Tee 90°  - 4" (100mm) -  Black

£153.36 inc VAT

Qty:

Estimated Delivery Up To 5 Working Days

No need to create an account to get delivery costs.
For a full delivery quote to your address, add the products you require to your basket and click the ‘View Contents’ button to see a full list of delivery options and costs for your entire order.

Technical Data

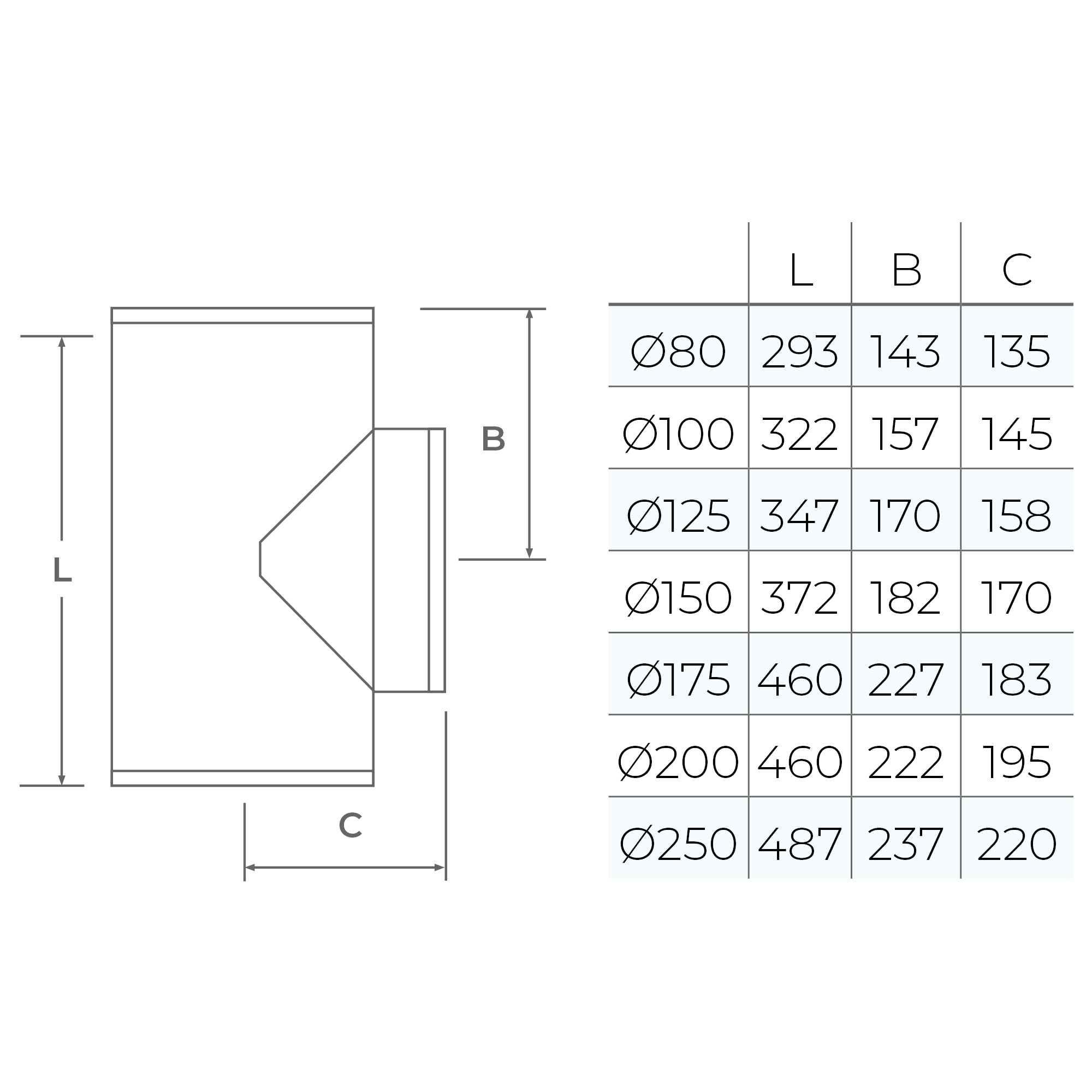

    4" (100mm) 90° Tee - Black

    The 90° Tee is usually installed when you are connecting the flue to the rear outlet of an appliance.



    KW Pro Range

    The KW Pro system has been designed for use all solid fuel, wood, coal, gas, oil and pellet heating appliances. It has been tested to a maximum operating temperature of 600°C and comes with a 25 year warranty.

    KW Pro has exceptional thermal properties which have allowed it to be classified as G50. The 25mm high density mineral insulation is injected into the cavity of the chimney under high pressure; this improves the thermal efficiency of the system which in turn helps maintain constant and reliable flue performance.

    The KW Pro range has the largest selection of starting components of any chimney system available in the U.K. This enables you to complete the installation with the most aesthetically pleasing transition from stove to chimney possible.

    Locking bands are included with each component as required; the standard locking band will provide lateral support for up to 1.9 metres of pipe above the final wall support. Structural locking bands are available and allow an additional metre height.

    KW Pro is suitable for installation on both dry and condensing appliance applications. (Silicone seals are required for condensing appliances).



    Please see our Technical Information section for easy to understand guides for all the Building Regulations involved with stoves and flues.

    For more information about twin wall flue installations, see our guide.

    Call us for help: 01376 555182

    • Distance to Combustibles: 50mm
    • Brand: KW Pro
    • Warranty: 25 Years
    • Finish: Black
    • Internal Diameter: 100mm
    • Outer Diameter: 150mm
    • Grade of Steel: 316 Internal, 304 External
    • Thickness of Steel: 0.40mm
    • Insulation: Compressed Rockwool
    • Temperature Resistance: 600°C
    • Approvals: HETAS/CE
    • Designation: EN1856-2 T600 N1 W V2 L50040 G50/EN1856-1 T200 P1 W V2 L50040

    The KW Pro range of flue products carries a 25 year warranty which covers manufacturing defects. Provided that the system has been correctly installed and used as per the installation instructions. As with all chimney systems it is imperative the flue is swept on an annual basis by an approved chimney sweep and a signed record of this is maintained. Where solid fuels are burned, these must only be fuels approved and specified by either the solid fuel association or HETAS. The use of any other fuel will invalidate the warranty, as will any evidence of a chimney fire. The powder coated surface of a coloured flue has a 2 year warranty
