Flue Heights

As one of the main purposes of a flue system is to remove the products of combustion from your home, it stands to reason that your chimney must be of a certain length and height to safely distribute these fumes up into the atmosphere and not into your neighbour’s upstairs window.

Building Regulations stipulate a minimum system length (stove collar to base of terminal) of 4.5m but that is the bare minimum to ensure a sufficient change in pressure for a draw to get started and the stove to even operate. Many environments, situations and stoves will require longer systems than this to perform at their optimum efficiency and heat output.

An added benefit of attaining a certain height with your flue system is the improved draw this will create. As you extend your flue you are extending the pressure difference which can only improve the draw and performance of the chimney and stove. This also ensures the draw is not impeded in any way by adjacent buildings and trees which will affect the direction of air across the top of your flue.

Approved Document J of the Building Regulations for England & Wales illustrates the heights you must achieve with your system however, if you find it hard to get your head around the jargon they use - and you are not alone! - then hopefully our illustrations below will help out.

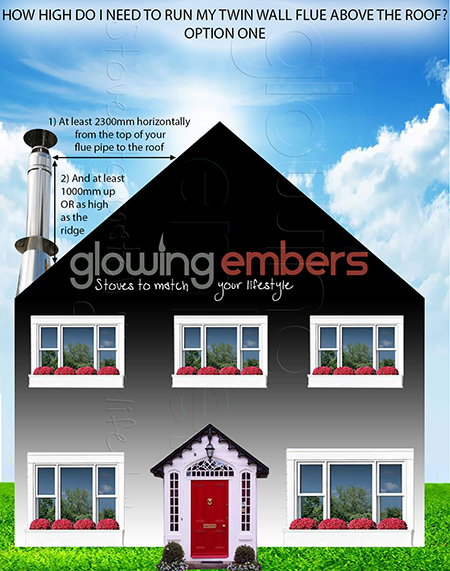

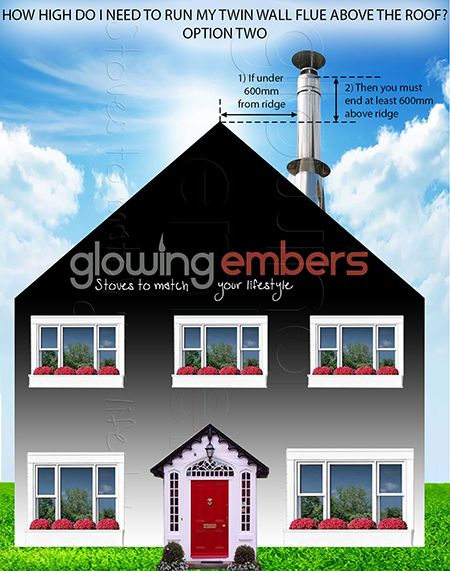

2300mm is the magic number when it comes to flue heights as it doesn’t only apply to the horizontal distance between the system and the roof surface (pictured above). If there are any obstacles to the flue within 2300mm of it, such as windows in the roof or neighbouring buildings or structures, these need to be taken into consideration when determining how high to run your flue system:

• If you have an openable window in your roof and the flue will be within 2300mm either side of it or anywhere below it, then your flue system must rise above the window by 1000mm
• If a neighbouring building is so close that any part of it comes within 2300mm of your chimney system, your flue must rise above that part of the adjacent building by 600mm

We can even go one further and calculate just how high your flue will extend once through the roof surface, depending on the pitch:

• 25 Degree Pitch = 1070mm high.
• 30 Degree Pitch = 1330mm high.
• 35 Degree Pitch = 1610mm high.
• 40 Degree Pitch = 1930mm high.
• 45 Degree Pitch = 2300mm high.
• 50 Degree Pitch = 2740mm high.

For flue systems installed in single storey extensions and conservatories, 2300mm again comes into play. If the flue passes through the extension or conservatory roof within 2300mm of the house, then the full height of the house must be cleared by at least 1000mm (see first image above). However, if the flue is sited further away from the house, then only the minimum 4.5m flue system rule applies.

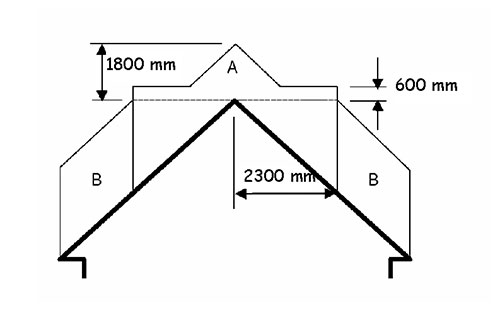

Should your roof be thatched or made of any other combustible material, then as you can imagine these distances must increase. As illustrated below, if your flue exits through the roof within Section A then you are required to rise at least 1800mm vertically above the roof surface AND at least 600mm above the ridge. Alternatively, if your flue exits within Section B then your vertical distance remains at least 1800mm and at least 2300mm horizontally from the roof surface:

It is worth noting that the distances highlighted above are minimum distances only and your system may be required to extend beyond these to create a sufficient draw.
